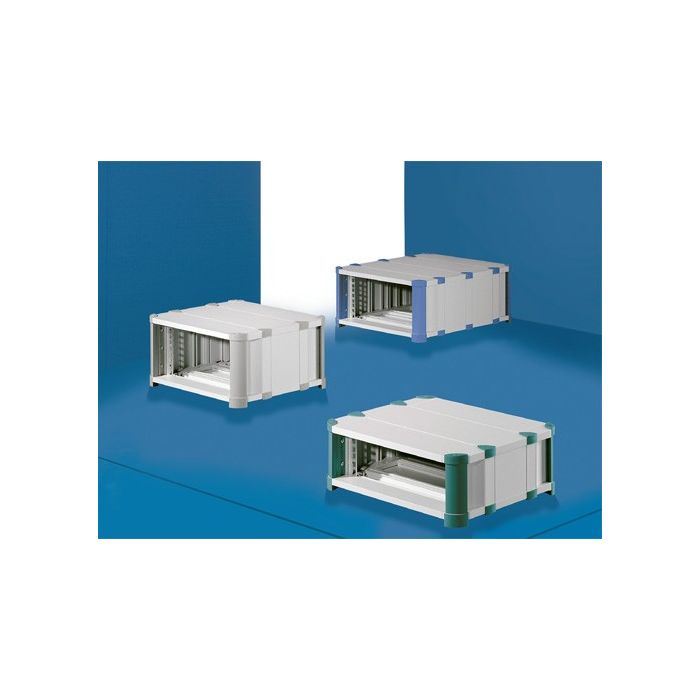

HeiCase Unvented 12U/19"/540T RAL7030
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
-
Produkt Merkmale
| Produktfamilie | HeiCase |
|---|
| Produktgruppe | HeiCase 482,6 mm (19'') |
|---|
| Breite (mm) | 482,6 mm (19") |
|---|
| Tiefe der Seitenwand | 540 mm |
|---|
| Griffloch | Nein |
|---|
| Typ der Abdeckung | unvented |
|---|
| Allgemeine Produktinformationen | Technical specifications: - Depth: 300 mm, 420 mm, 540 mm
- Installation width: 482.6 mm (19˝)
- Installation options: 482.6 mm (19˝) slide-in equipment to IEC 60 297-3
Material/surface finish: - Covers: Extruded aluminum section/ die-cast, spray-finished
- Side panels: Extruded aluminum section, spray-finished
- Corner caps: Plastic 482.6 mm (19˝) mounting
- bracket: extruded aluminium section, clear-chromated
Color: RAL 7035 (pale grey) Decorative colors and corner caps: - RAL 5018 (turquoise)
- RAL 5012 (pale blue)
- RAL 7030 (stone grey)
Protection category:
IP 42 for unvented version. Supply includes: - 2 side panels,
- 2 covers,
- 8 corner caps,
- 8/12/16 cover caps (300/420/540 mm depth),
- 4 482.6 mm (19˝) mounting brackets,
- 4 threaded inserts,
- 2 plain inserts
- Cases are supplied preassembled
Special sizes and colors available on request. Note:
For rear installation, order back panel/door separately. |
|---|
| Gewicht | 16 kg |
|---|
-
Allgemeine Daten
| Hersteller | HEITEC AG |
|---|
| EAN Code | 4250558931295 |
|---|
| Gewährleistung | 12 Monate |
|---|
|
