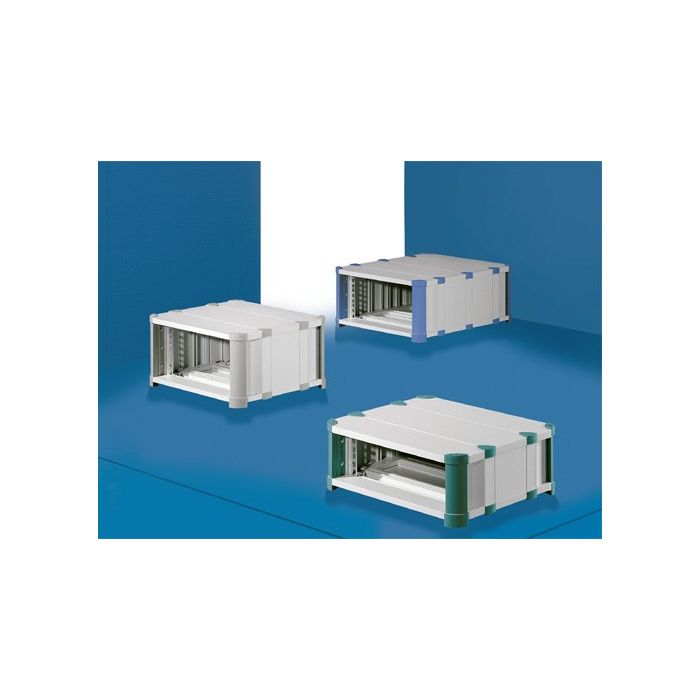

HeiCase Unvented 3U/1/2 19"/300T RAL5018

SKU:
3750210
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiCase
    ProduktgruppeHeiCase 269,2 mm (1/2 19'')
    Breite (mm)269,2 mm (1/2 19")
    Tiefe der Seitenwand300 mm
    Versionunvented
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:
    • Depth: 300 mm, 420mm, 540 mm
    • Installation width: 269.2 mm (½ 19˝)
    • Installation options: 269.2 mm (½ 19˝)-slide-in equipment to IEC 60 297-3

    Material/surface finish:
    • Covers: Extruded aluminum section/ die-cast, spray-finished
    • Side panels: Extruded aluminum section, spray-finished
    • Corner caps: Plastic 482.6 mm (19˝) mounting
    • bracket: Extruded aluminum section, clear-chromated

    Color:

    RAL 7035 (pale grey)

    Decorative colors and corner caps:
    • RAL 5018 (turquoise)
    • RAL 5012 (pale blue)
    • RAL 7030 (stone grey)

    Protection category:

    IP 42 for unvented version.

    Supply includes:
    • 2 side panels,
    • 2 covers,
    • 8 corner caps,
    • 8/12/16 cover caps (300/420/540 mm depth),
    • 4 482.6 mm (19˝) mounting brackets,
    • 4 threaded inserts,
    • 2 plain inserts,
    • 1 rear panel,
    • Cases are supplied preassembled

    Special sizes and colors available on request.


    Property rights:
    German registered design
    no. 96 09 457
    UK reg. design no. 2064682
    US design patents
    Des. 402,640 and
    Des. 423,464
    Japan. reg. designs
    no. 1045507 and 1045508
    Gewicht4,8 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558923153
    Gewährleistung12 Monate
