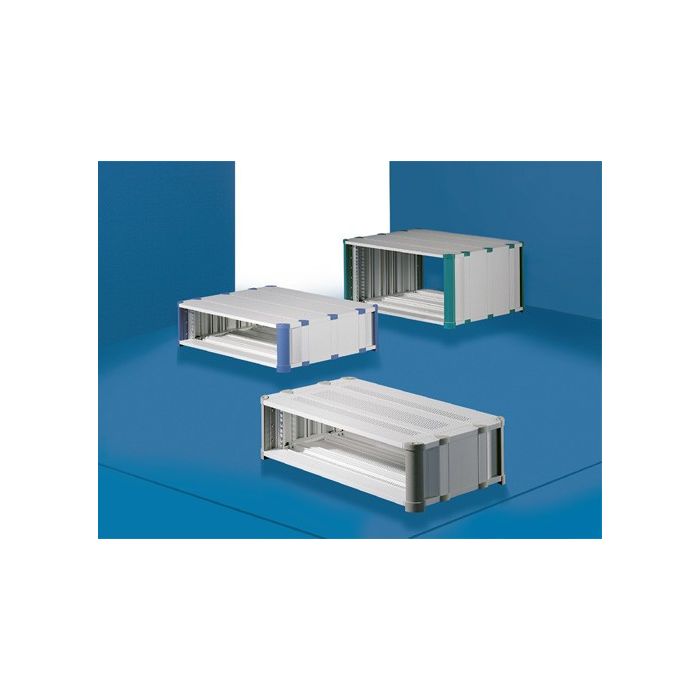

HeiCase Unvented 6U/19"/420T RAL7030

SKU:
3750614
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiCase
    ProduktgruppeHeiCase 482,6 mm (19'')
    Breite (mm)482,6 mm (19")
    Tiefe der Seitenwand420 mm
    GrifflochNein
    Typ der Abdeckungunvented
    Allgemeine ProduktinformationenTechnical specifications:
    • Depth: 300 mm, 420 mm, 540 mm
    • Installation width: 482.6 mm (19˝)
    • Installation options: 482.6 mm (19˝) slide-in equipment to IEC 60 297-3
    Material/surface finish:
    • Covers: Extruded aluminum section/ die-cast, spray-finished
    • Side panels: Extruded aluminum section, spray-finished
    • Corner caps: Plastic 482.6 mm (19˝) mounting
    • bracket: extruded aluminium section, clear-chromated
    Color: RAL 7035 (pale grey) Decorative colors and corner caps:
    • RAL 5018 (turquoise)
    • RAL 5012 (pale blue)
    • RAL 7030 (stone grey)
    Protection category:
    IP 42 for unvented version. Supply includes:
    • 2 side panels,
    • 2 covers,
    • 8 corner caps,
    • 8/12/16 cover caps (300/420/540 mm depth),
    • 4 482.6 mm (19˝) mounting brackets,
    • 4 threaded inserts,
    • 2 plain inserts
    • Cases are supplied preassembled
    Special sizes and colors available on request. Note:
    For rear installation, order back panel/door separately.
    Gewicht9,76 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558931387
    Gewährleistung12 Monate
