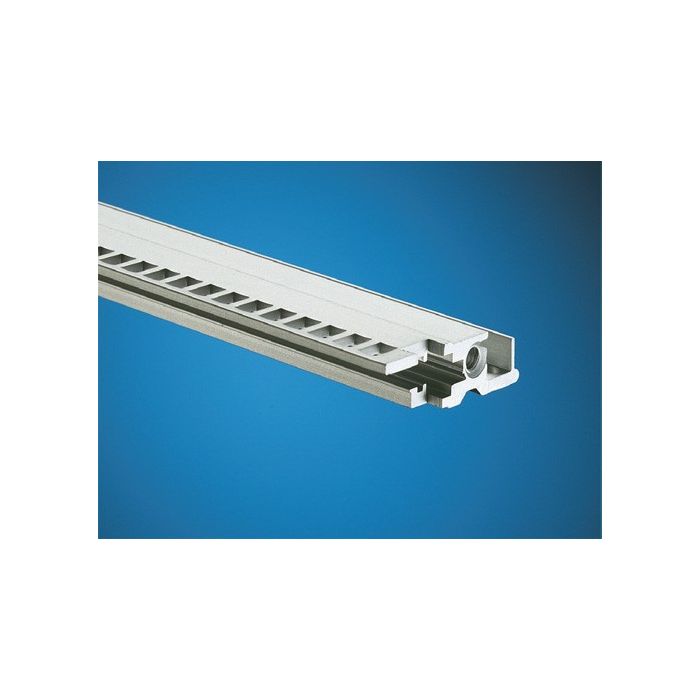

Horizontal rail w. 10mm Extens. 192HP
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
Product eigenschappen
Produktfamilie Horizontal rails for HeiPac Vario Line Produktgruppe Horizontal rail front, with 10mm top (V-Ext.1) Griffloch Nein Allgemeine Produktinformationen For type IV, IVs and VII injector/extractor handle To accommodate guide rails and for the attachment of front panels. Front projection and pitch pattern of holes based on IEEE 1101.10 and IEC 60 297-3-102 HP pitch pattern of holes for the precise installation of guide rails M4 thread on end face Straight-through core hole Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length Material: Extruded aluminum section Surface finish: Clear-chromated or anodizedGewicht 337 gr.
Generieke data
Hersteller HEITEC AG Ean code 4250558909324 Gewährleistung 12 Monate
