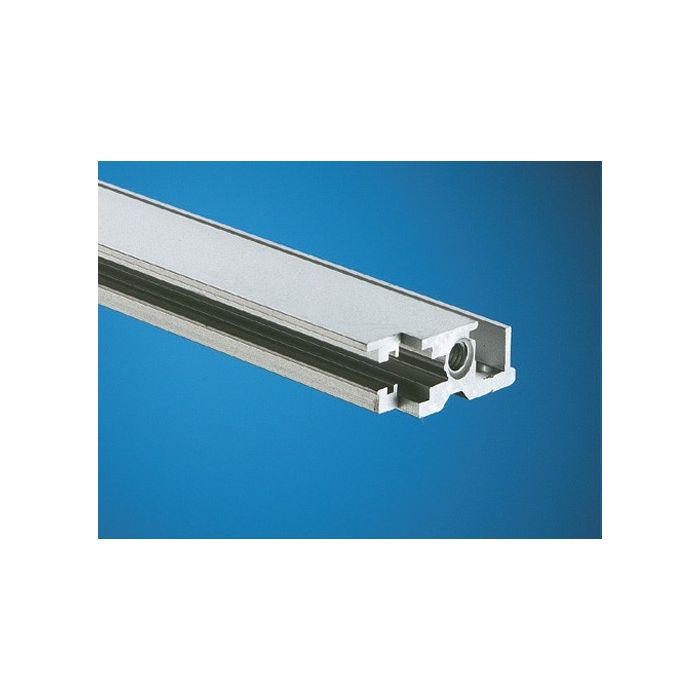

Horizontal rail w. 10mm Extens. 84HP

SKU:
3684567
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHorizontal rails for HeiPac Vario Line
    ProduktgruppeHorizontal rail front, with 10mm top (V-Ext.1)
    GrifflochNein
    Allgemeine ProduktinformationenFor type IV, IVs and VII injector/extractor handle
    To accommodate guide rails and for the attachment of front panels.
    • Front projection and pitch pattern of holes based on IEEE 1101.10 and IEC 60 297-3-102
    • HP pitch pattern of holes for the precise installation of guide rails
    • M4 thread on end face
    • Straight-through core hole
    • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
    Material: Extruded aluminum section
    Surface finish: Clear-chromated or anodized
    Gewicht0,142 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558902882
    Gewährleistung12 Monate
