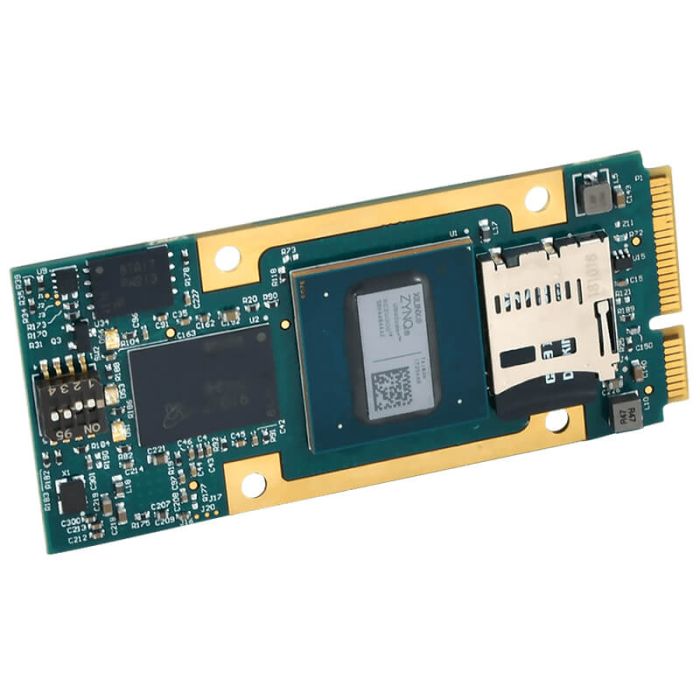

    main product photo

    AcroPack 14x LVDS channel module

    SKU:
    APZU-304
    Fabrikant:
    Acromag
    • Number of ports : 14
    • I/O Type : LVDS
    • Bus Type : PCIe
    • Type Mezzanine : Mini PCIe
    AcroPack 14x LVDS channel module

    Note: Operating temperature
    Air-cooled (with heat spreader): -40 to 70°C
    (minimum airflow of 400LFM is recommended).
    Conduction-cooled: -40 to 80°C
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      CharacteristicsFeatures
      Zynq MPSoC
      • Dual-core ARM Cortex A53-based application processor unit (APU)
      • Dual-core ARM Cortex R5-based real-time processor unit (RPU)
      • NEON™ media-processing engine
      • UltraScale+ 154k programmable logic cells
      • Extensive on-chip memory

      I/O and Peripherals
      • TTL, LVDS, or RS422/485 I/O interface
      • Gigabit Ethernet interface
      • USB 2.0 transceiver
      • USB-UART debug terminal port

      General
      • PCI Express interface
      • MicroSD or NOR flash boot
      • Quad-SPI flash memory
      • LPDDR4 storage memory
      • DMA transfers
      • BSP and FPGA design kit software
      • VxWorks®, Linux®, and Windows® support
    • Ports & Interfaces
      External I/OI/O Connector
      68x Pin field I/O (to carrier board)

      LVDS
      14x LVDS I/O channels

      Interrupts
      20x channels of interrupts configurable for high-to-low, low-to-high, and change-of-state event types

      Ethernet
      1x GbE Port (media independent interface (RGMII))

      USB Interface
      1x Microchip USB3320C

      UART to USB Interface
      1x Silicon Labs CP2103GM
    • Mechanical specifications
      Dimensions70.0mm (L) x 30.0mm (W) x 12.5mm (H)
      Board thickness: 1.0mm
      Bus TypePCIe
      Type MezzanineMini PCIe
    • Environmental specification
      Storage temperature-55°C/+125°C
      Operating Temperature-40°C/+70°C
      relative air humidity5% to 95% non-condensing
    • Certificates
      standardsVibration, sinusoidal operating
      Designed to comply with IEC 60068-2-6.
      10-500Hz, 5G, 2 hours/axis.

      Vibration, random operating
      Designed to comply with IEC 60068-2-64.
      10-500Hz, 5G-rms, 2 hours/axis.

      Shock, operating
      Designed to comply with IEC 60068-2-27.
      30G, 11ms half sine; 50G, 3mS half sine;
      18 shocks at 6 orientations for both test levels.
    • Software support
      Operating SystemWindows, Linux, VxWorks
    • General data
      ManufacturerAcromag
      Warranty24 Months
    Downloads
  • datasheetAcromag-APZU-User-Configurable-Zynq-UltraScale-MPSoC-IO.pdf
    		•
