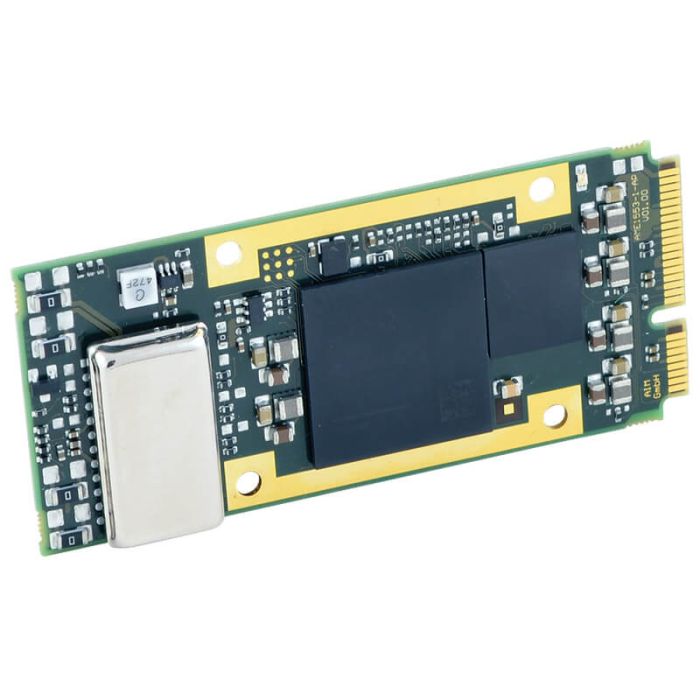

    main product photo

    AcroPack Dual-redundant full multi-func MIL-STD-1553 CH mod

    SKU:
    AP572-000
    Fabrikant:
    Acromag
    • Number of ports : 1
    • I/O Type : MIL-STD-1553
    • Bus Type : PCIe
    • Type Mezzanine : IndustryPack
    AcroPack Dual-redundant full multi-func MIL-STD-1553 CH mod

    Note: Operating Temperature Range
    -40°C to +85°C for conduction cooled applications measured at FPGA component case.
    -40°C to +70°C for air cooled applications measured at ambient air with 200lfm airflow.
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      CharacteristicsFeatures
      • Very small form factor at 70mm x 30mm
      • One dual redundant MIL-STD-1553 channel
      • Transformer or direct coupling options
      • IRIG-B input
      • 4 open/ground avionics level (+35V) discrete I/O
      • 2 digital discrete inputs
      • 1 trigger input, 1 trigger output
      • RT address inputs
      • 128MB global RAM onboard for data scheduling and buffering
      • -40°C to +85°C operating temperature
      • High performance RISC processors onboard
      • Host CPU offload for low CPU utilization
      • Hard real time precision and timing
      • DMA engine for optimized bus transfers and low PCIe bus utilization
      • Flexible & upgradeable firmware design provides full control of obsolescence and configuration management
    • Ports & Interfaces
      External I/OMIL-STD-1553 Channel
      One dual redundant full multi-function MIL-STD-1553 ch. (BC + multi-RT + BM simultaneous operation).
    • Mechanical specifications
      Dimensions70.0mm (L) x 30.0mm (W)
      Bus TypePCIe
      Type MezzanineIndustryPack
    • Environmental specification
      Storage temperature-55°C/+125°C
      Operating Temperature-40°C/+70°C
      relative air humidity5% to 95% non-condensing
    • Certificates
      standardsOperational Shock
      Tested to IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half, 18 shocks at 6 orientations for both test levels.

      Sinusoidal Operating Vibration
      Tested to IEC 60068-2-6: 10-500Hz, 5G, 2 hours/axis.

      Random Operating Vibration
      Tested to IEC 60068-2-64: 10-500Hz, 5G-rms, 2 hours/axis
    • Software support
      Operating SystemWindows, Linux, VxWorks
    • General data
      ManufacturerAcromag
      Warranty24 Months
    Downloads
  • datasheetAcromag-AP570-MIL-STD-1553-Communication.pdf
    		•
