VGA M12
1x M12 12-pin for VGA with waterproof cover and chain
Chipset
Intel® HD Graphics 520
Main features
Characteristics
Features
• Intel 6th Gen. Core i5/i3 Processor
• SUS 316 Stainless Steel
• Total IP66 Grade with M12 Waterproof Connector
• Variety of IO applications
• WLAN for Option
• Wide range DC 9~36V Power Input
• Support Panel Mount & VESA Mount
• Fanless Design
• ATEX/IECEx Zone2, Zone22 and C1D2/C2D2/C3 Certified
Expansion
expansion slots
mini PCIe
1x Mini-PCIe slot (full size) for option WLAN/BT module
Ports & Interfaces
LAN Interface
2
USB 2.0 ports
2

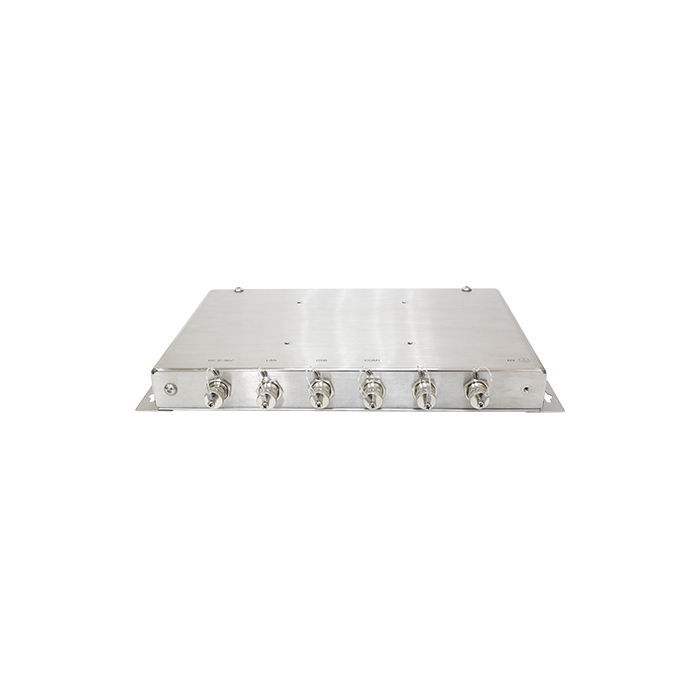

External I/O
Ethernet M12
2x M12 8-pin for LAN with waterproof cover and chain
USB M12
1x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
Serial M12
1x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
Power M12
1x M12 3-pin for DC power with waterproof cover and chain
Storage
Storage Interface
2.5" Slot
1x 2.5” HDD or SSD space
Mechanical specifications
Dimensions
334mm (W) x 38.5mm (D) x 195mm (H)
Casing
Stainless steel case
Mounting
VESA mount 100 x 100, Wall mount
Product features
Weight
4.0kg
Electrical specifications
Input range
DC 9~36V
Power consumption
Max: 45.7W
Environmental specification
Storage temperature
-30°C/+70°C
Operating Temperature
-20°C/+60°C
relative air humidity
10 to 95% @ 40°C, non-condensing
Certificates
certificates
Certifications
CE / FCC Class A
ATEx / IECEx Zone2 Ex ec IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987
