• High performance with Intel® Core™ i5-7300U processor for control applications
• Fanless passive cooling, turnable heatsink optional
• Flexible DIN RAIL mounting
• Broad range of interfaces and expansion capabilities
• Supports Kontron APPROTECT based on WIBU Systems technology optionally
Expansion
expansion slots
1x mPCIe
Ports & Interfaces
LAN Interface
2
Audio interface
Optional
External I/O
• 4x USB 3.0
• 2x LAN (GbE)
• 1x HDMI
• 1x DP
Internal I/O
2x COM ( RS 232, RS422, RS485, BIOS configurable)
Storage
Storage capacity
512 GB
Storage Interface
Up to 512 GB Max M.2 SSD 2.5” slim SSD drive bay (optional)
Mechanical specifications
Dimensions
180 (w) x 50 (h) x 134 mm (d) (with drive bay: H: 58 mm)
Casing
Din Rail
Mounting

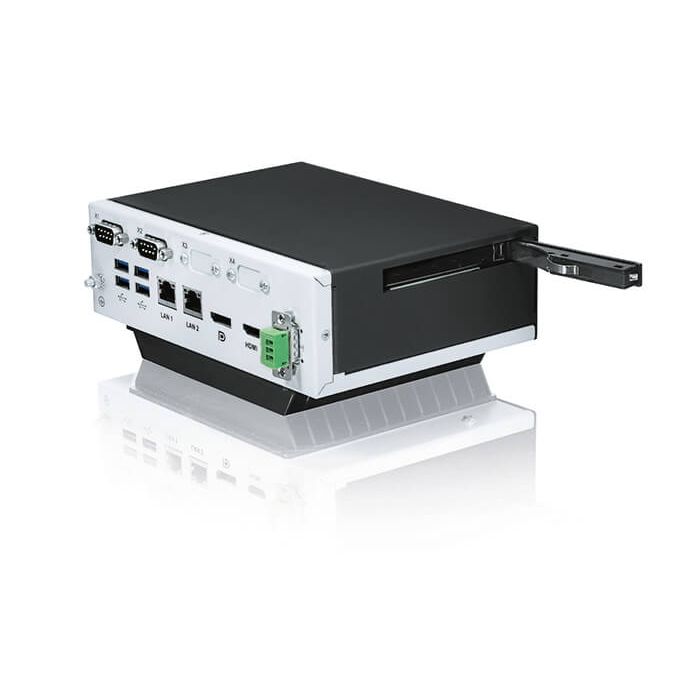

The KBox A-150-KBL is a rail mount PC box designed for use in a DIN rail enclosure or housing by attaching a DIN rail mounting clamp. The DIN rail mounting clamp can be attached on:
• Top side of the chassis
• Heat sink on the top side of the chassis
• Rear side of the chassis
