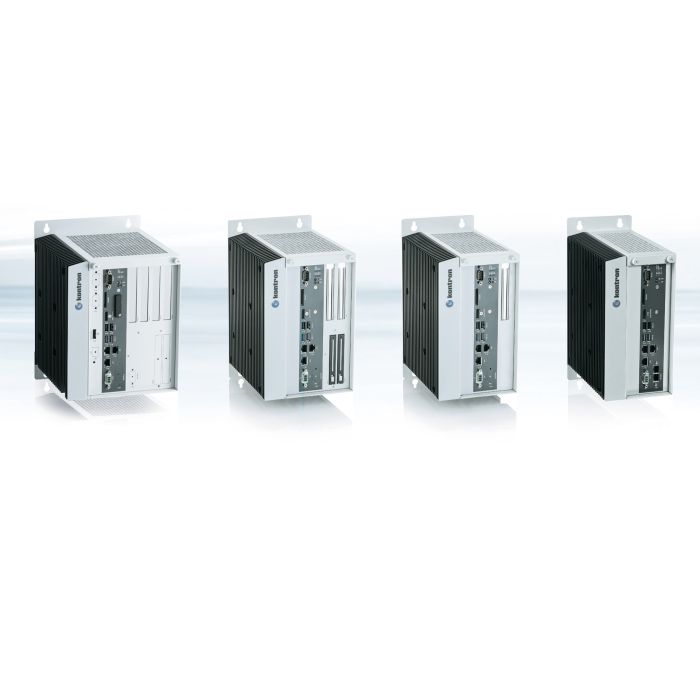

main product photo

Kbox C-102-0 powerful Industrial Based on Com Express

SKU:

SCA-990944-CL

SKU : SCA-990944-CL
Processor : Celeron
Max memory : 4GB
Operating Temperature : 0°C/+65°C

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Processor

Processor Celeron
Processor serie Skylake
Base Frequency 1,6 GHz
Number of cores 2
chipset CM236
Memory

Memory type DDR4
Memory slots 1
Video

Connections • 1x DisplayPort
Chipset Intel® HD Graphics 510

Main features

Characteristics	• Based on 6th Gen Intel® Core™ or XEON® E3-1500 for demanding control applications • Modular approach - Forever Young • Maintenance-free design • Security Solution Kontron APPROTECT based on WIBU Systems technology • Highest flexibility and expansion capabilities • Supports Kontron WideLink for remote visualization applications

Expansion

expansion slots • 2x mPCIe (1x for Fieldbus expansion)

Ports & Interfaces

serial ATA interface	1x 2.5” SATA SSD/HDD
LAN Interface	3
External I/O	• 3x 10/100/1000 MBit/s Ethernet with IEEE1588 support • 2x USB 3.0, 2x USB 2.0 • 1x DisplayPort • 1x RS232 • 8x LEDs (Thermal, Drive, SD, Watchdog, 4x General Purpose) • 2x Buttons Power/Reset & Rescue

Storage

Storage capacity	128 GB
Storage Interface	• 2x mSATA (internal) • 1x SDCard (removable) • 1x 2.5” SATA SSD/HDD internal

Mechanical specifications

Dimensions	290 (h) x 117 (w) x 210 (d) mm
Casing	Stainless steel case
Mounting	The KBox C-102 is supplied with assembled mounting brackets. The key holes of the upper and lower mounting brackets allow you to mount the KBox C-102 to a mounting side of the control cabinet in vertical position. This is the only permitted operating position

Product features

Weight 3.8 kg (8.37 lbs.)
Electrical specifications

Input range 24V DC (+ 20 %/– 15 %)
Environmental specification

Storage temperature -40 °C to +85 °C
Operating Temperature 0°C/+65°C
Certificates

certificates • CE, CB, UL, FCC
General data

Application Automation, IoT
Warranty 24 Months

Downloads

Manual	kbox-c-102_4_2_1_0_users-guide_v1_0_2018-04-12.pdf
datasheet	kbox-c-102-x_20180629_datasheet.pdf

€1,361.25 €1,125.00
