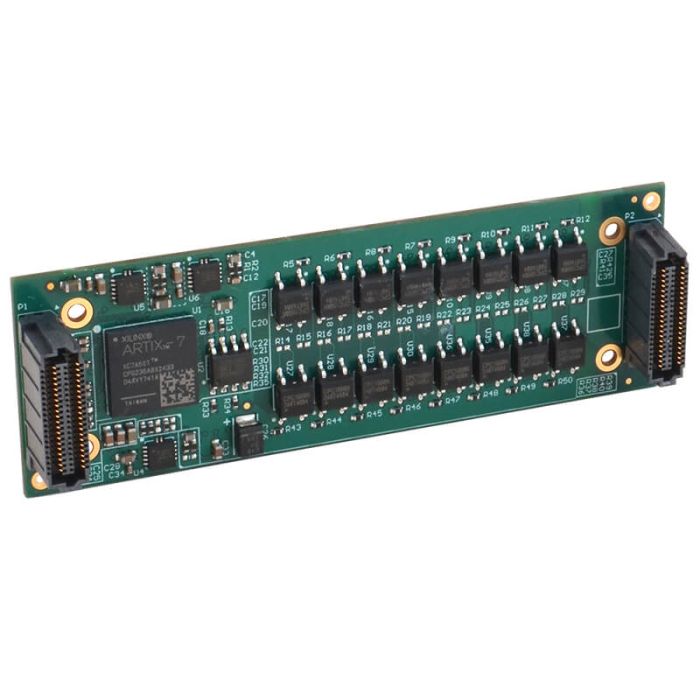

    main product photo

    QMC Module 32x iso Digital Input ±60V AC/DC VITA 93 QMC cond

    SKU:
    QMC452-1111
    Fabrikant:
    Acromag
    • Number of ports : 32
    • I/O Type : Digital I/O
    • Bus Type : PCIe
    • Type Mezzanine : QMC
    QMC Module 32x iso Digital Input ±60V AC/DC VITA 93 QMC cond
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      CharacteristicsFeatures
      • 32 bipolar solid-state relays
      • Port-isolated output channels
      • ±60V AC/DC voltage range
      • Unique ground reference points for each port permits AC and DC switching
      • High-side or low-side switch configuration
      • TTL-compatible with pull-up resistors
      • High speed processing
      • Failsafe power-up and system reset
      • Output readback function
      • Software configured (no jumpers/switches) allowing “on-the-fly” changes without removing modules
      • Pins are compatible with QMC440 input module for loopback monitoring
      • Extended temperature range and support for conduction-cooled systems
    • Ports & Interfaces
      External I/OOutput Channel Configuration
      32x isolated bipolar solid-state SPST-NO relays.
      Supports AC and DC switching

      Isolation
      Individual solid-state relays provide isolation.
      4x Ports of 8x channels, each with separate port commons, ensure port-to-port isolation.
      Individual Ports are isolated from each other and from the PCIe interface logic.
      Output lines of an individual Port share a common connection and are not isolated from each other.
      Internal I/OVITA 93 connector
      2x high-performance 80-pin connectors
      provide separate field I/O and PCIe bus host interfaces
    • Mechanical specifications
      Dimensions78.25mm (L) x 26.00mm (W) x 11.00mm (H)
      Bus TypePCIe
      Type MezzanineQMC
    • Environmental specification
      Storage temperature-55°C/+125°C
      Operating Temperature-40°C/+85°C
      relative air humidity5% to 95% non-condensing
    • Software support
      Operating SystemWindows, Linux, VxWorks
    • General data
      ManufacturerAcromag
      Warranty24 Months
    Downloads
  • datasheetQMC450-Isolated-Digital-Output-Module-Air-or-Conduction-Cooled.pdf
    		•
