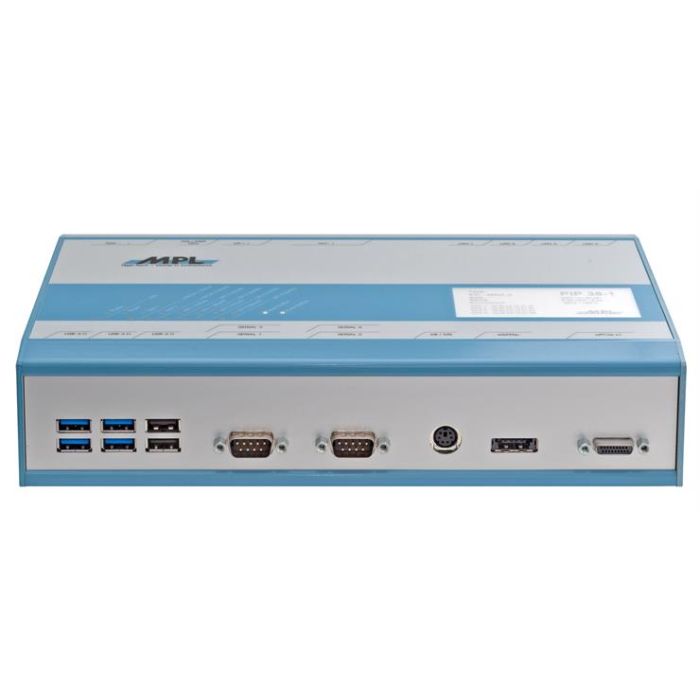

Rugged Embedded Computer Intel Cel. 1047E CPU up to 128GB
-
SKU :
SCA-990944-BP
-
Processor :
Intel Celeron
-
Max memory :
12GB
-
Operating Temperature :
-20°C/+60°C
Please contact us for the delivery time.
Configure this system
Details
More Information
Downloads
More Information
-
Processor
| Processor | Intel Celeron |
|---|
| Processor serie | Ivy Bridge |
|---|
| Base Frequency | 1,4 GHz |
|---|
| Number of cores | 2 |
|---|
| chipset | QM77 |
|---|
-
Memory
| Memory type | Soldered DDR3 |
|---|
| Memory slots | 1 |
|---|
-
Video
| Connections | Display Port (DP) up to 2560x1600 (DP) and DVI-I and 24-bit LVDS up to 1920 x 1200
Dual display capable, ESD protected.
|
|---|
-
Expansion
| expansion slots | mPCIe:
- 2x mPCIe PCI Express Gen2, x1 lane & USB 2.0 (1 combined with mSATA)
ePCIe:
- 1x external PCI Express Gen2, x1 lane port with 500 MB/s, ESD protected connector
PCI/104-Express:
- 1x PCIe/104 slot (4x PCIe x1 lane, 2x USB 2.0), PCI/104 slot (33 or 66 MHz PCI bus)
|
|---|
-
Ports & Interfaces
| RAID | 0, 1 |
|---|
| Watchdog timer | Configurable granularity 1-255 sec. or 1-255 min. |
|---|
| LAN Interface | 4 |
|---|
| USB 2.0 ports | 2 |
|---|
| Audio interface | Intel HDAudio signals |
|---|
| External I/O | Serial Ports:
- 2x full modem RS232 ports, ESD protected external DB9 connectors
- 2x additional RS232/485 ports (optional)
USB:
- 4x USB 3.0 ports, 2x USB 2.0 ports, supports USB keyboards and mice as legacy devices
- 3x additional internal USB2.0 ports
LAN:
- 4x GbE ports (Intel 82574IT) on RJ45 , ESD protected connectors, Wake on LAN support
PS/2:
- For keyboard and mouse, 1x 6-pin Mini-DIN connector, ESD protected
|
|---|
| Internal I/O | Graphics Interfaces:
- Gen3 PCIe port x16 (PEG) for graphic card.
Intel HDAudio signals:
- Available on a 1 mm header, sound card (HDSOUND-1) is available
|
|---|
-
Storage
| RAID | 0, 1 |
|---|
| Storage Interface | SATA:
- 2x SATA 3.0 ports and 2x SATA 2.0 ports, RAID 0/1/5/10 support
mSATA:
- 1x mSATA Full-Mini Card combo socket with SATA 2.0 & USB 2.0
eSATAp:
- Powered external SATA port with SATA 2.0 and USB 2.0, ESD protected connector
|
|---|
-
Mechanical specifications
| Dimensions | 270 x 162 x 62/83/120mm (DIN-Rail) / 290 x 162 x 62/83/120mm (Flange) |
|---|
| Casing | Robust rugged aluminum, int. chromated, ext. powder coated |
|---|
| Mounting | DIN-Rail
Flange |
|---|
-
Product features
-
Electrical specifications
| Input range | 8 - 36 VDC input range, ESD and EMC protected power input (optionally up to 110VDC) |
|---|
| Power consumption | 11-27 watts |
|---|
| Ignition control | Ignition input specifically for vehicles (also available on a 4-pin Mini-DIN connector) |
|---|
-
Environmental specification
| Storage temperature | -45°C up to +85°C (-49°F to +185°F) |
|---|
| Operating Temperature | -20°C/+60°C |
|---|
-
Certificates
| standards | The MPL PIP32-1 is designed to meet or exceed the most common standards. Particular references are:
EMC:
- EN 55022
- EN 55024
- EN 61000
- MIL-STD-461E
Shock & Vibration:
- EN 60068
Environmental & Safety:
- EN 50155
- MIL-STD-810G
- EN 60601
- EN 60950
Approval List:
- CE, IEC 60945, IACS E10
|
|---|
| certificates | Certification:
- EN 50155 Class Tx
|
|---|
-
Software support
| Operating System | Windows Embedded & Linux |
|---|
-
General data
| Manufacturer | MPL |
|---|
| Application | Automation, Railway |
|---|
| Warranty | 24 Months |
|---|
|
