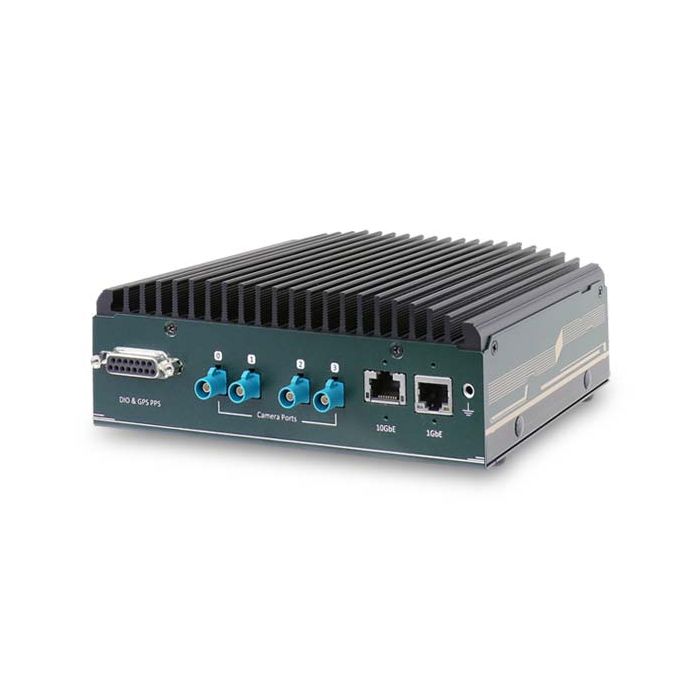

Rugged NVIDIA Jetson NO8G Orin GMSL2 Camera Sensor Hub
SKU:
NRU-51V+-JONANO8
Fabrikant:
Neousys
SKU :NRU-51V+-JONANO8
Processor :NVIDIA Jetson
Max memory :8GB
Operating Temperature :-25°C/+60°C
Rugged NVIDIA Jetson NO8G Orin GMSL2 Camera Sensor Hub
Please note:
The system is equipped with an M.2 2242 SSD by the manufacturer.
You can choose capacities of 128GB / 256GB / 512GB / 1024GB.
This can be configured for you on request.
DisplayPort
1x DisplayPort, up to 3840x2160 at 60Hz
Chipset
NVIDIA® Ampere GPU (1.024 Cores, 32 Tensor-Cores)
Main features
Characteristics
• Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1
• Rugged -25°C/+60°C operating temperature range
• Support 4x GMSL2 automotive cameras via FAKRA Z connectors
• 1x 10GbE 10Gb and 1x GbE 1Gb Ethernet port
• 2x mini-PCIe slots for WiFi/GNSS/NVMe/CAN modules
• 1x M.2 3042/3052 B-Key slot for 4G/5G modules
• 1x isolated CAN 2.0
• 1x configurable RS232/422/485 port
• 1x GPS PPS input
• 8V~35V DC input, built-in ignition power control
Expansion
expansion slots
Mini PCIe
1x mini PCI Express slot (PCIe / USB 2.0) for GNSS, V2X, or CAN
M.2
1x 3042/3052 M.2 B-Key slot (USB 3.1 Gen 1 / USB 2.0) for 4G/5G modules, dual SIM support (1x front-accessible, 1x internal)
Ports & Interfaces
LAN Interface
2
USB 2.0 ports
1
USB 3.x ports
2
External I/O
GMSL Camera
4x GMSL2 FAKRA Z connectors, supporting 4x 1920x1080 @ 30 FPS camera input
Ethernet Ports
1x 10GbE Port with screw-lock
1x 1GbE Port with screw-lock
USB Ports
2x USB 3.1 Gen1 Ports (total 5 Gbps shared with M.2 B key)
1x micro USB (OTG only)
Serial Port
1x hardware configurable RS-232/422/485 Port
CAN
1x isolated CAN bus 2.0 port
Isolated DIO
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
Ground Terminal
1x M4 ground terminal for chassis ESD shielding
Storage
Storage capacity
128 GB
Storage Interface
Please note:
The system is equipped with an M.2 2242 SSD by the manufacturer.
You can choose capacities of 128GB / 256GB / 512GB / 1024GB.
This can be configured for you on request.
Mini PCIe
1x mini PCI Express slot (PCIe / USB 2.0) for M.2 2242 M-Key for SSD
