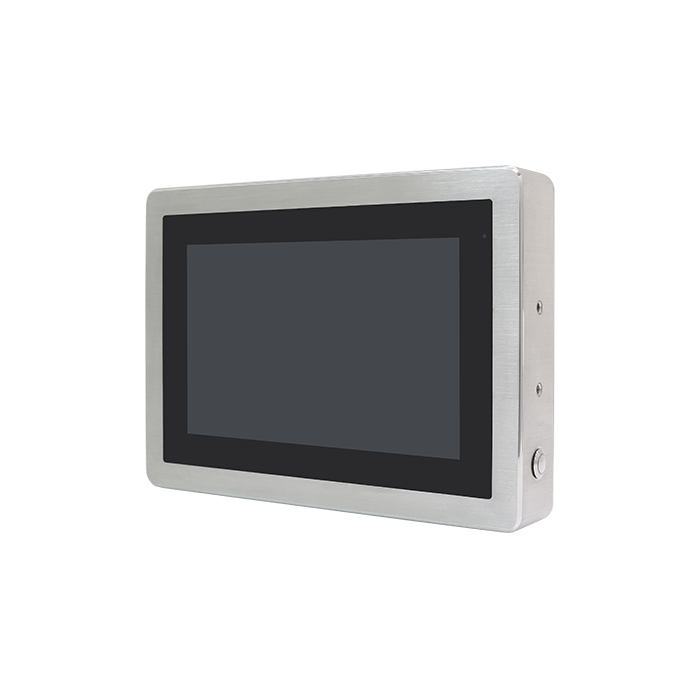

10.1" WXGA IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT

SKU:
VITAM-810BP
Fabrikant:
Aplex
  • Application : Automation, Digital signage
  • Processor : Intel Core
10.1" WXGA IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Processor
    ProcessorIntel Core
    Processor serieElkhart Lake
    Socket typeBGA1493
    Base Frequency2.00 GHz
    Number of cores4
    TDP10W
  • Memory
    Memory typeDDR4 SO-Dimm
    Memory slots1
  • Video
    ChipsetIntel® UHD Graphics for 10th Gen Intel® Processors
  • Main features
    Characteristics• 10.1" New Generation Stainless Steel Panel PC
    • Intel Celeron J6412 2.0GHz Onboard Processor
    • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for option)
    • IP66/IP69K Rated with M12 Connectors
    • Support Resistive Touch and Projected Capacitive Touch
    • Touch on/off Button on the Side Edge for Hygienic Cleaning
    • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
  • Ports & Interfaces
    LAN Interface1
    USB 2.0 ports1
    External I/OLan
    1x M12 8-pin Lan with Waterproof cover

    COM
    1x M12

    USB
    1x M12 8-pin USB 2.0 with Waterproof cover
  • Storage
    Storage capacity128 GB
  • Mechanical specifications
    Dimensions300 x 220 x 53 mm
    CasingStainless steel case
    MountingVESA mount 75 x 75, Yoke mount for optional
  • Product features
    Weight3.94 kg
  • Electrical specifications
    Input rangeDC 9~36V
    Power consumption 31.46W
  • Environmental specification
    Storage temperature -30°C/+70°C
    Operating Temperature0°C/+50°C
    relative air humidity10 to 95% @ 40°C, non-condensing
  • Certificates
    certificatesCE/FCC Class A
  • General data
    ManufacturerAplex
    ApplicationAutomation, Digital signage
    Warranty24 Months
