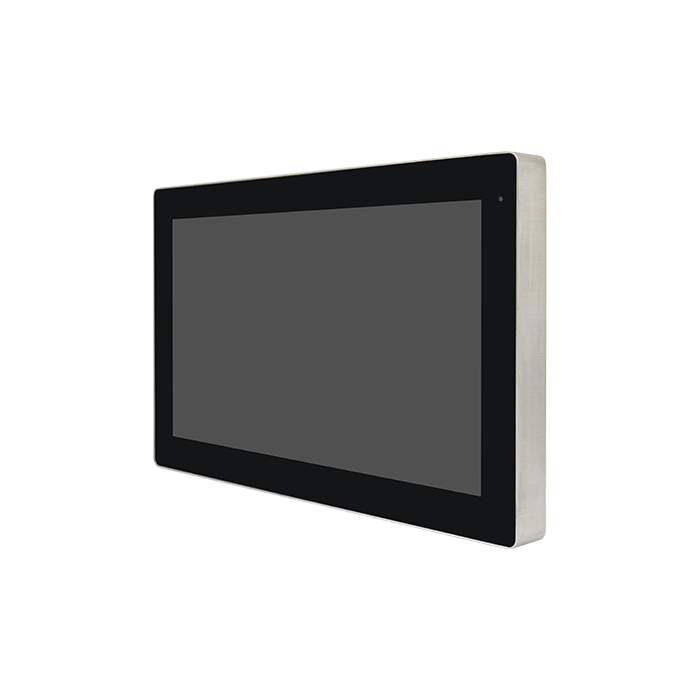

    main product photo

    15.6" WXGA RVS PCAP IP66/IP69K VGA HDMI 24VDC

    SKU:
    PHANTAM-116AP
    Fabrikant:
    Aplex
    • Application : Automation
    • Screen size : 15,6"
    • Touchscreen type : Capacitive Touch
    15.6" WXGA RVS PCAP IP66/IP69K VGA HDMI 24VDC
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads

    Introduction

    PhanTAM-1XXA series
    The PhanTAM-1XXA series with TB-6030 AD board is an IP66/IP69K rated with M12 connectors new generation stainless steel display, which comes with 15.6” and 21.5”color TFT LCD. PhanTAM-1XX series are DC 24V power input and true flat front bezel designed with grade 304 stainless steel enclosure (grade 316 is for option).

    Futhermore, the models support projected capacitive touch, and can be high brightness LCD and optical bonding designed for option. It supports touch on/off button on the side edge for hygienic cleaning nad ergonomic versatile mounting: space-saving VESA mounting and Swing Arm Stand.
    More Information
    • Display
      Screen size15,6"
      Touchscreen typeCapacitive Touch
      Contrast Ratio500:1
      Luminance (cd/m2)400
      Viewing Angle (H/V°)170°(H)/160°(V)
      Max screen resolution1366 x 768
    • Video
      ConnectionsVGA
      1x M12 12-Pin for VGA with waterproof cover

      HDMI
      1x W.F. Micro-HDMI with waterproof cover
    • Expansion
      expansion slotsFeatures
      • 15.6" Fanless Stainless Steel Display
      • IP66/69K Full Sealed with Anti-Corrosion Enclosure
      • Ultra Slim Front Frame Design
      • Special Hygienic Bolts on Rear Case
      • M12 Connectors with Waterproof Cover
      • DC 24V Power Input
    • Ports & Interfaces
      External I/OUSB
      1x M12 8-Pin for USB Touch with waterproof cover

      Power
      1x M12 3-Pin for DC power with waterproof cover
    • Mechanical specifications
      Dimensions404.4 x 225.4 x 64.5 mm
      CasingFull IP66 & 69K
      MountingVESA Mount 100 x 100, Swing ARM (optional)
    • Product features
      Weight4.85kg
    • Electrical specifications
      Input rangeDC 24V
      Power consumptionPhanTAM-116AP: 12.1W (MAX)
    • Environmental specification
      Storage temperature-30°C/+70°C
      Operating Temperature0°C/+50°C
      relative air humidity10 to 90% @ 40°C, non- condensing
    • Certificates
      certificatesCE/FCC Class A
    • General data
      ManufacturerAplex
      ApplicationAutomation
      Warranty24 Months
    Downloads
  • ManualPhanTAM-1A_USER_MANUAL_V1.1.pdf
    datasheetPhanTAM-116AP(H)_V1.6.pdf
    		•
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
