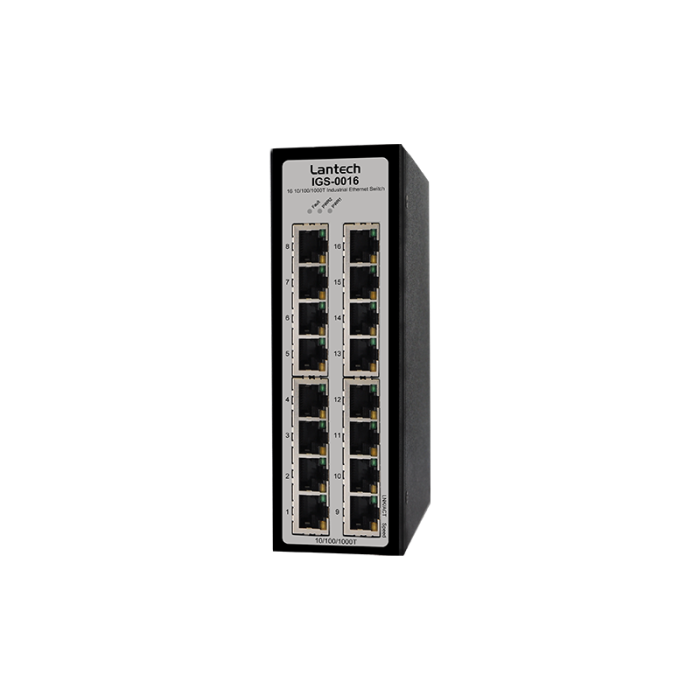

16 port 10/100/1000T Industrial Unmanaged Ethernet Switch
• Dual 9V~36VDC input compliant with ISO 7637-2
• Galvanic isolation protection (power input /Ethernet port to system; power input to Ethernet port)
• Relay alarm output for power fail and alarm
• E-marking certificate for vehicle application (-24V model)
Ports & Interfaces
LAN Interface
16
transfer rate
• 14,880pps for Ethernet port
• 148,800pps for Fast Ethernet port
Led
Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green)
Mechanical specifications
Dimensions
49 (W) x 105 (D) x 152 (H) mm
Casing
Metal case. IP-30
Mounting
DIN Rail and Wall Mount** Design
**Optional
Product features
Weight
900 gr
Electrical specifications
Input range
dual 9V~36VDC
Environmental specification
Storage temperature
40°C~85°C / -40°F~185°F
Operating Temperature
-20°C/+60°C
relative air humidity
5% ~ 95% (Non-condensing)
Certificates
standards
• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-TX
• IEEE802.3x Flow Control and Back Pressure
certificates
EMI & EMS
• FCC Class A,
• CE EN55032, CE EN55024,
• CE EN61000-4-2, CE EN61000-4-3,
• CE EN61000-4-4, CE EN61000-4-5,
• CE EN61000-4-6, CE EN61000-4-8,
• CE EN61000-6-2
