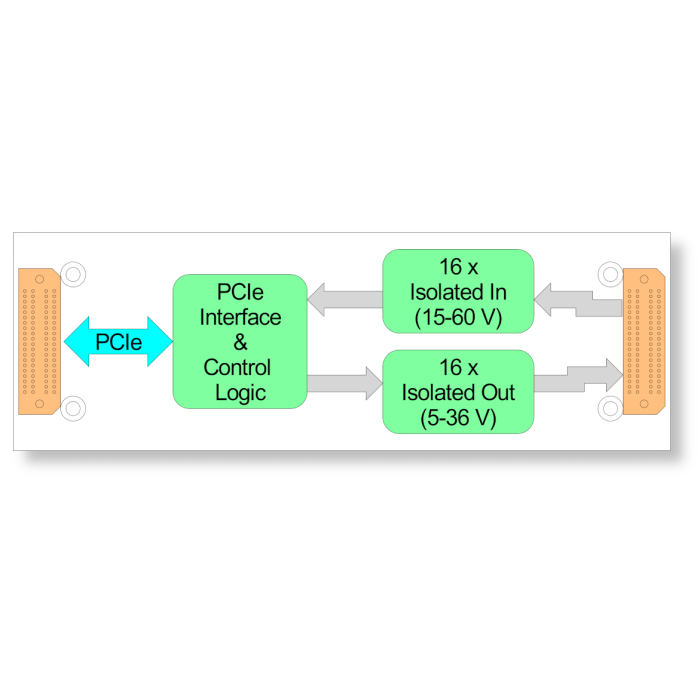

main product photo

16x Isolated DI 16x Isolated DO 0.3 A QMC air-cooled

SKU:

TQMC602-10R-A

Fabrikant:

Tews

Number of ports : 32
I/O Type : Digital I/O
Bus Type : PCIe
Type Mezzanine : QMC

16x Isolated DI 16x Isolated DO 0.3 A QMC air-cooled

Please contact us for the delivery time.

Details

More Information

More Information

Main features

Characteristics	Features • Standard single-width QMC module conforming to VITA93.0 • Galvanic isolation of inputs and outputs • Input: - 16x interrupt generating digital Inputs, IEC61131-2 Type 3 - 15V - 60V of input voltage • Output: - 16x digital outputs, up to 4µs update rate - 0.3A per output, 5V - 36V supply voltage • Version: air-cooled solution

Ports & Interfaces

External I/O Digital Input
16x digital inputs

Digital Output
16x digitl output (0.3A)
Mechanical specifications

Dimensions 26mm (W) x 78.25 mm (L)
Bus Type PCIe
Type Mezzanine QMC
Environmental specification

Operating Temperature -40°C/+85°C
General data

Manufacturer Tews

Price on request
