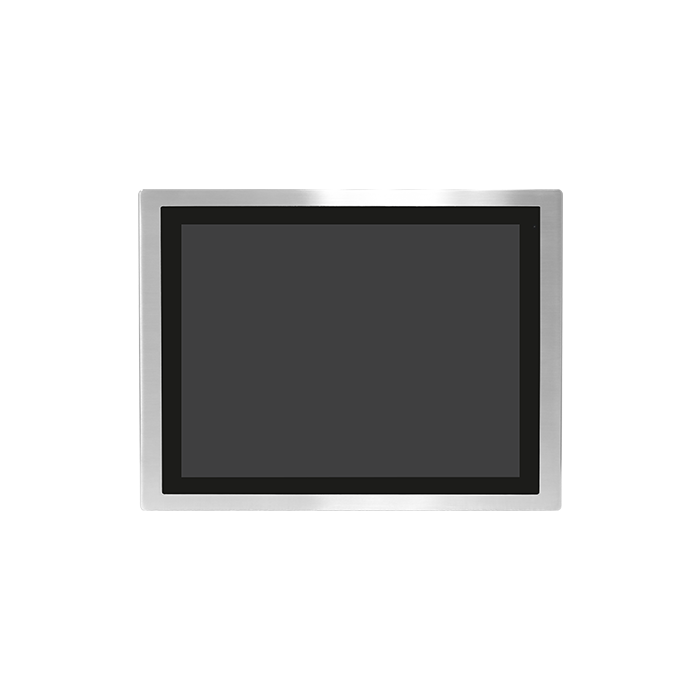

    19" SXGA FPD Front RVS HMI VGA DVI DP HDMI 9~36VDC

    SKU:
    FABS-119P
    Fabrikant:
    Aplex
    • Screen size : 19"
    • Touchscreen type : Capacitive Touch
    • Casing : IP66/IP69K compliant Front Bezel 304 Stainless Steel,
      Aluminum die-casting back cover
    • Operating Temperature : 0°C/+50°C
    19" SXGA FPD Front RVS HMI VGA DVI DP HDMI 9~36VDC
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Display
      Screen size19"
      Touchscreen typeCapacitive Touch
      Contrast Ratio1000:1
      Luminance (cd/m2)350
      Viewing Angle (H/V°)170°(H)/160!(V)
      Max screen resolution1280 x 1024
    • Video
      ConnectionsVGA
      1x VGA

      DVI-D
      1x DVI-D (share with HDMI)

      DisplayPort
      1x DisplayPort

      HDMI
      1x HDMI (share with DVI-D)
    • Main features
      Characteristics• Stainless steel front bezel display
      • Flat front panel touch screen
      • VGA/DP/DVI/HDMI input
      • System power LED light *
      • High brightness LCD for option
      • IP66/IP69K compliant front bezel
      • OSD on the rear side
      • Wide range DC 9~36V power input
    • Mechanical specifications
      Dimensions485 x 398 x 63.8 mm
      CasingIP66/IP69K compliant Front Bezel 304 Stainless Steel,
      Aluminum die-casting back cover
      MountingPanel mount, VESA mount 100 x 100
    • Product features
      Weight6.3kg
    • Electrical specifications
      Input rangeDC 9~36V
      Power consumptionTBD
    • Environmental specification
      Storage temperature-30°C/+70°C
      Operating Temperature0°C/+50°C
    • Certificates
      certificates• R/P/G/RH/PH/GH Model: CE/FCC Class A
      • P/G Model is compliance with EN 1672-2 (option)
    • General data
      ManufacturerAplex
      ApplicationAutomation, IoT
      Warranty24 Months
    Downloads
  • datasheetFABS-119PRG-Datasheet.pdf
    		•
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
