21.5" FHD IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT

SKU:
VITAM-821BP
Fabrikant:
Aplex
  • Application : Digital signage, Food & beverage
  • Screen size : 21,5"
  • Touchscreen type : Capacitive Touch
21.5" FHD IP66/IP69K J6412, DDR4 slot, 128GB SSD, PCT
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Display
    Screen size21,5"
    Touchscreen typeCapacitive Touch
    Contrast Ratio1000:1
    Luminance (cd/m2)250
    Viewing Angle (H/V°)178(H) /178(V)
    Max screen resolution1920 x 1080
  • Main features

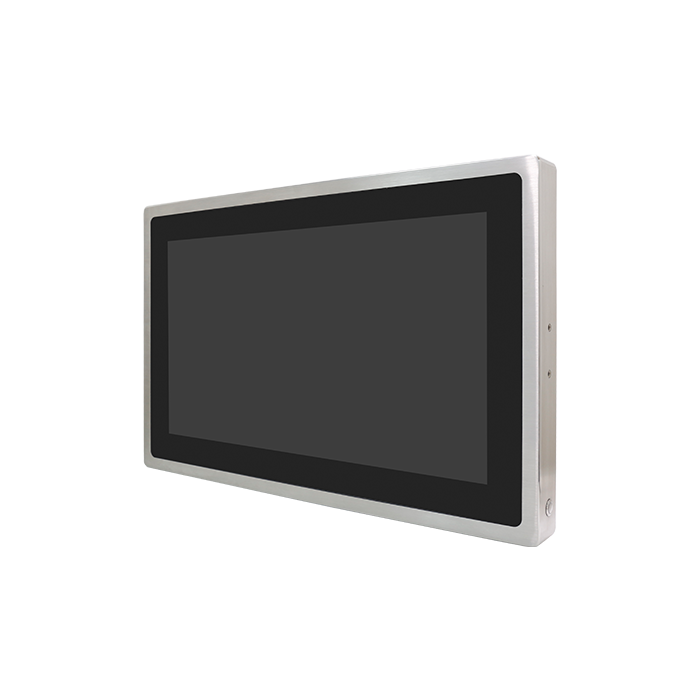

    Characteristics• 21.5" New Generation Stainless Steel Panel PC
    • Intel Celeron J6412 2.0GHz Onboard Processor
    • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
    (Grade 316 for option)
    • IP66/IP69K Rated with M12 Connectors
    • Support Resistive Touch and Projected Capacitive Touch
    • Touch on/off Button on the Side Edge for Hygienic Cleaning
    • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 100 x 100 mm Mounting
  • Ports & Interfaces
    LAN Interface1
    USB 2.0 ports1
    External I/OUSB
    1 x M12 8-pin for USB 2.0 with waterproof cover

    Serial Port
    1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover

    LAN
    1 x M12 8-pin for LAN with waterproof cover
  • Storage
    Storage capacity128 GB
  • Mechanical specifications
    Dimensions571 x 362 x 55 mm
    CasingStainless steel case
    MountingVESA mount 100 x 100
  • Product features
    Weight10.05 kg
  • Electrical specifications
    Input rangeDC 9~36V
    Power consumption39.34W (MAX)
  • Environmental specification
    Storage temperature-30°C/+70°C
    Operating Temperature0°C/+50°C
    relative air humidity10 to 95% @ 40°C, non-condensing
  • Certificates
    certificatesCE/FCC Class A
  • General data
    ManufacturerAplex
    ApplicationDigital signage, Food & beverage
    Warranty24 Months
