    main product photo

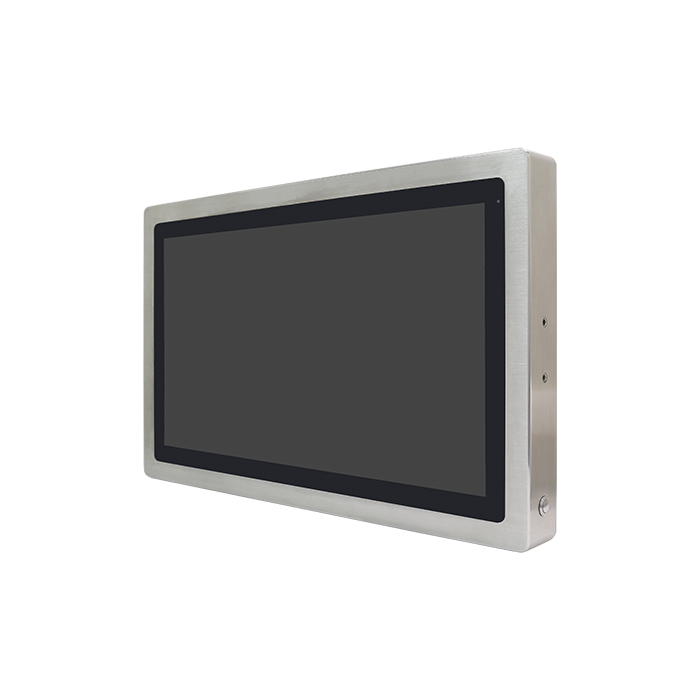

    21,5" IP66 RVS Display VGA/HDMI Res. Touch

    SKU:
    VITAM-121R
    Fabrikant:
    Aplex
    • Screen size : 21,5"
    • Touchscreen type : Resistive Touch
    • Casing : Stainless steel case
    • Operating Temperature : 0°C/+50°C
    21,5" IP66 RVS Display VGA/HDMI Res. Touch
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Display
      Screen size21,5"
      Touchscreen typeResistive Touch
      screen backlightBacklight lifetime(hrs)
      50,000
      Contrast Ratio1000:1
      Luminance (cd/m2)250
      Viewing Angle (H/V°)178°
      Max screen resolution1920 x 1080
    • Video
      ConnectionsVGA
      1 x M12 12-pin for VGA with waterproof cover and chain

      HDMI
      1 x W.F. HDMI with waterproof cap
    • Main features
      Characteristics• 21.5” New Generation Stainless Steel Display
      • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
      • (Grade 316 for Option)
      • IP66/IP69K Rated with M12 (W.F.) Connectors
      • Support Resistive Touch, Projected Capacitive Touch, and Glass
      • Touch on/off Button on the Side Edge for Hygienic Cleaning
      • Support Ergonomic Versatile Mounting: Yoke Mounting /
      • Space-saving VESA 100 x 100 mm Mounting

      USB
      M12 USB 2.0 with waterproof cover and chain
    • Mechanical specifications
      Dimensions571 x 362 x 55 mm
      CasingStainless steel case
      MountingVESA Mount 100 x 100
    • Product features
      Weight9.5 kg
    • Electrical specifications
      Input rangeVESA Mount 100 x 100
      Power consumptionMax 19W
    • Environmental specification
      Storage temperature -30/+70°C
      Operating Temperature0°C/+50°C
    • Certificates
      standardsHumidity 10 to 95% @ 40°C, non- condensing
      certificatesCE/FCC Class A
    • General data
      ManufacturerAplex
      ApplicationDigital signage, Food & beverage, In-vehicle
    Downloads
  • ManualViTAM-1XX USER MANUAL APLEX LOGO V1.8.pdf
    datasheetViTAM-121PRG(H)_V1.6.pdf
    		•
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
