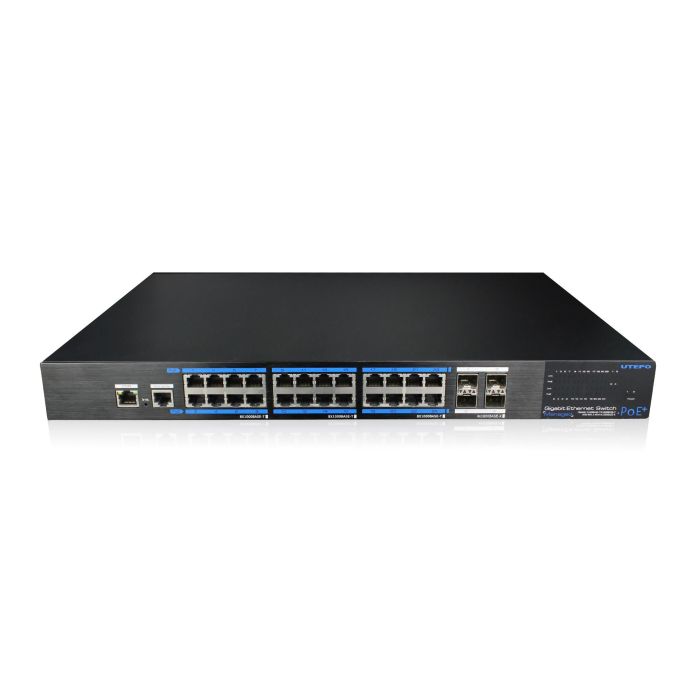

    24 Ports PoE Full Gigabit L2 Managed Ethernet Switch

    SKU:
    UTP7524GE-POE-4GF
    Fabrikant:
    Utepo
    • Manufacturer : Utepo
    • Device : Managed Switch
    Lokaal op voorraad
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      Characteristics• Provide 24* PoE Gigabit downlink RJ45 ports , 4* Gigabit uplink SFP ports
      • Provide web-based layer 2 network management and PoE management by simple operation
      • Support high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance
      • Support fast ring ,Self-healing in 20ms Min
      • Support temperature-controlled fan
      • Quick Installation, simple operation, convenient for wall/desk/rack installation.
    • Ports & Interfaces
      LAN Interface24
      transfer rate• Copper Ports: 24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)
      • SFP Ports: 4*1000 Base-X SFP(Mini-GBIC)
      • OOB Port: 1*10/100Base-TX RJ45(only used to Web management) default IP:192.168.1.200 name:admin password:admin)
      PoE availableYes
      POE capability• PoE Standard: 802.3af/at(PSE)
      • PoE Power Output 54V DC , 30 watts max
      • PoE Budge 390 watts max
      POE Management • Support Total Power Consumption Control
      • Support PoE ON/OFF
      • Support Single Port 30W max. Power Change and Port Output Priority
    • Mechanical specifications
      Dimensions442mm (l)× 320mm (w) × 44.5mm (h)
    • Product features
      Weight4.35kg
    • Environmental specification
      Storage temperature• -40-85℃
      Operating Temperature-10°C/+50°C
      relative air humidity• 5%-95%(Non-condensing)
    • Certificates
      certificatesLightning protection • 6KV Execute：IEC61000-4-5

      ESD • 6KV Contact discharge
      • 8KV Air discharge
      • Execute：IEC61000-4-2
    • General data
      ManufacturerUtepo
      Warranty24 Months
    Downloads
  • datasheetUTP7524GE-PoE-4GF_Datasheet.PDF
    		•
    €595.32 €492.00
