LE-37O

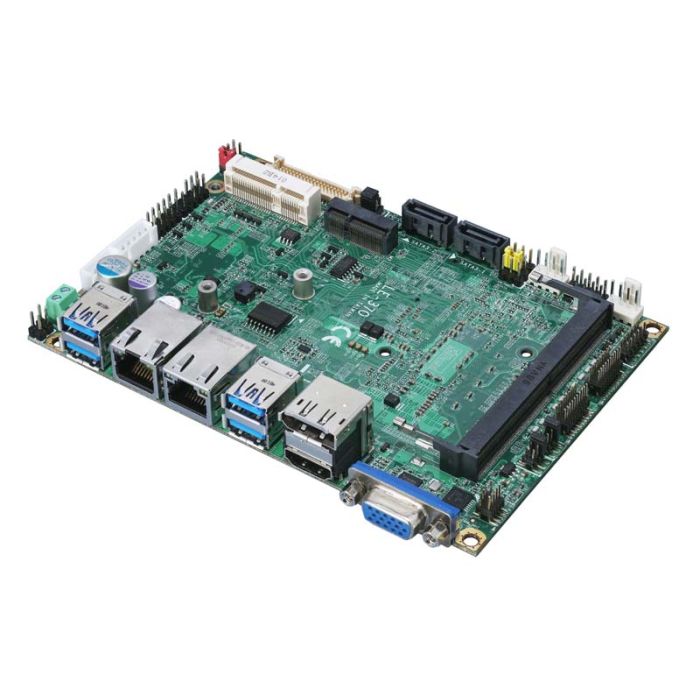

LE-37O is a 3.5” Motherboard which supports 11th Generation Intel® Core™ U-Series processors, integrated Intel® UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.
New feature for Tiger Lake UP3
Tiger Lake UP3 processors are based on the 10nm process node, and offer long-life availability. They have a PCIe Gen4 for M.2 2280 slot.
All in One multimedia solution
The board provides MiniPCIe slot (support mSATA), M.2 2280 slot and M.2 2230 slot.
Tiger Lake support Windows10 version 2004 64bit and Linux kernel 5.8
Intel recommends using Windows 10 version 2004 64bit. It may lose some drivers if you use other Windows version.
More Information
Processor
Processor
Intel Core
Processor serie
Tiger Lake
Base Frequency
up to 4.4GHz Turbo
Number of cores
4
TDP
15W Base, up to 28W Turbo
chipset
SoC
Memory
Memory type
DDR4
Memory slots
1
Video
Connections
VGA
1x VGA
DisplayPort
1x DisplayPort
HDMI
1x HDMI
LVDS
1x LVDS by header
Chipset
Intel® Iris® Xe Graphics
Main features
Characteristics
Features
• Onboard Intel® Tiger Lake UP3 Processor
• 1x DDR4 SO-DIMM 3200 MHz up to 32GB
• Integrated DisplayPort, HDMI, LVDS, VGA for four display support
• 1x Intel® Gigabit PHY LAN, 1 x Intel® 2.5G Gigabit LAN
• 1x MiniPCIe (support mSATA)
• 1x M.2 (Key M 2280) support PCIe Gen4 for NVMe
• 1x M.2 (Key E 2230)
• 2x SATA3, 2 x USB2.0, 4 x USB3.2 Gen2, 4 x COM,1 x GPIO, 1 x PS/2
• Support Watchdog Timer
• Support OpenVINO for AI Computing
• Support 4K resolution
• DC input 9~35V
Expansion
expansion slots
Mini PCIe
1x MiniPCIe (support mSATA)
Note: CN_SATA cannot be used when mPCIe changed to mSATA
M.2
1x M.2 (Key E 2230) for Wi-Fi and Bluetooth
Ports & Interfaces
GPIO Interface
1x GPIO
serial ATA interface
2x SATA3
Watchdog timer
Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN Interface
2
USB 2.0 ports
2
USB 3.x ports
4
Audio interface
Realtek ALC262 HD Audio
External I/O
Ethernet Ports
1x Intel® I219-LM Gigabit PHY LAN(supports Intel® AMT 15.0)
1x Intel® I225-LM Gigabit LAN (up to 2.5GbE)
USB
4x USB3.2 Gen2
Internal I/O
USB
2x USB2.0
Serial
2x RS-232
2x RS-232/422/485
SMBus
1x SMBus
LCD Connector
1x LCD inverter connector
PS/2
1x PS/1
Storage
Storage Interface
SATA
2x SATA3
M.2
1x M.2 (Key M 2280) support PCIe Gen4 for NVMe
