3.5" SBC Intel i7-1370PE Fan GLAN 2x 2.5GLAN 3xM.2 3xUSB

SKU:
LE-37RP7R
Fabrikant:
Commell
  • Processor : Intel Core
  • Max memory : 64GB
  • Type SBC : 3,5"
  • Operating Temperature : 0°C/+60°C
3.5" SBC Intel i7-1370PE Fan GLAN 2x 2.5GLAN 3xM.2 3xUSB
Please contact us for the delivery time.
Details
More Information
Downloads

Introduction

LE-37R

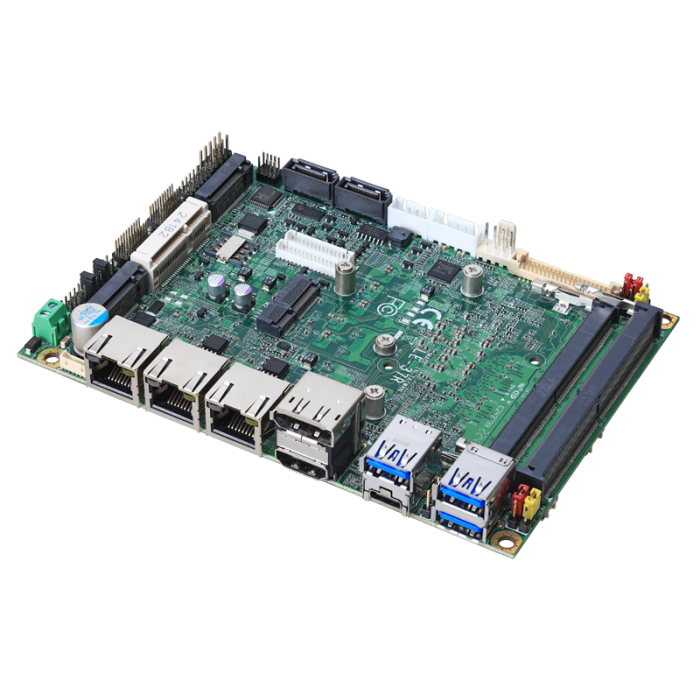

LE-37R is a 3.5” Motherboard which supports 12th & 13th Gen P/U Processors, integrated Intel® Xe Graphics, DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3, Type C with AHCI function for a system.

New feature for Alder Lake(12th) & Raptor Lake(13th)
12th & 13th Gen Processors are based on the 7nm SuperFin process, and offer long-life availability. i7-1270PE / i7-1370PE processor with 4/6 P-cores and 8 E-cores. P-cores can help you handle heavy tasks, and E-cores run background tasks efficiently to save power.

All in One multimedia solution
The board provides high performance onboard graphics, and supports Type C (Alt mode), HDMI, and High Definition Audio, to meet the very requirement of the multimedia application.

12th & 13th support Windows 10 version 21H2 64bit and Linux 5.18
Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you use other Windows version.
More Information
  • Processor
    ProcessorIntel Core
    Processor serieRaptor Lake
    Base Frequencyup to 4.8GHz Turbo
    Number of cores14
    TDP28W Base, up to 64W Turbo
    chipsetSoC
  • Memory
    Memory typeDDR5
    Memory slots2
  • Video
    ConnectionsDisplayPort
    1x DisplayPort
    1x Type-C (DP alt. Mode)

    HDMI
    1x HDMI

    LVDS
    1x LVDS by header

    HDMI/DVI Onboard
    2x HDMI / DVI by header
    ChipsetIntel® Iris® Xe Graphics eligible
  • Main features
    CharacteristicsFeatures
    • Onboard 12th & 13th Gen Intel® Core™ P/U Processors
    • 2x DDR5 SO-DIMM up to 4800 MHz 64GB
    • Integrated DisplayPort, HDMI, LVDS for four display support
    • 1x Intel® Gigabit PHY LAN, 2 x Intel® 2.5G Gigabit LAN
    • 1x MiniPCIe (support mSATA) with SIM Slot
    • 2x M.2 (Key M 2280) support PCIe Gen4 for NVMe
    • 1x M.2 (Key E 2230)
    • 2x SATA3, 2 x USB2.0, 3 x USB3.2 Gen2, 4 x COM,1 x GPIO
    • Support Watchdog Timer
    • Support 4K resolution
    • DC input 9~35
  • Expansion
    expansion slotsMini PCIe
    1x MiniPCIe with SIM Slot (support mSATA)
    Note: SATA2 cannot be used when mPCIe changed to mSATA

    M.2
    1x M.2 (Key E 2230) for Wi-Fi and Bluetooth
  • Ports & Interfaces
    GPIO Interface1x GPIO
    serial ATA interface2x SATA3
    Watchdog timerGenerates a system reset with internal timer for 1 min/s ~ 255 min/s
    LAN Interface3
    USB 2.0 ports2
    USB 3.x ports3
    Audio interfaceRealtek ALC888S HD Audio
    External I/OEthernet Ports
    1 x Intel® I219-LM Gigabit PHY LAN(supports Intel® AMT 16)
    2 x Intel® I226-LM Gigabit LAN (up to 2.5GbE)

    USB
    3x USB3.2 Gen2
    Internal I/OUSB
    2x USB2.0

    Serial
    2x RS-232
    2x RS-232/422/485

    SMBus
    1x SMBus

    LCD Connector
    1x LCD inverter connector
  • Storage
    Storage InterfaceSATA
    2x SATA3

    M.2
    2x M.2 (Key M 2280) support PCIe Gen4 for NVMe

    MSATA
    1x mSATA port (mux with mini-PCIe)
    Note: SATA2 cannot be used when mPCIe changed to mSATA
  • Mechanical specifications
    Dimensions146mm x 101mm (L x W)
    Type SBC3,5"
  • Electrical specifications
    Input rangeDC input 9~35V
  • Environmental specification
    Storage temperature-20°C/+80°C
    Operating Temperature0°C/+60°C
    relative air humidity10%~90%, non-condensing
  • General data
    ManufacturerCommell
    ApplicationAutomation
    Warranty18 Months
