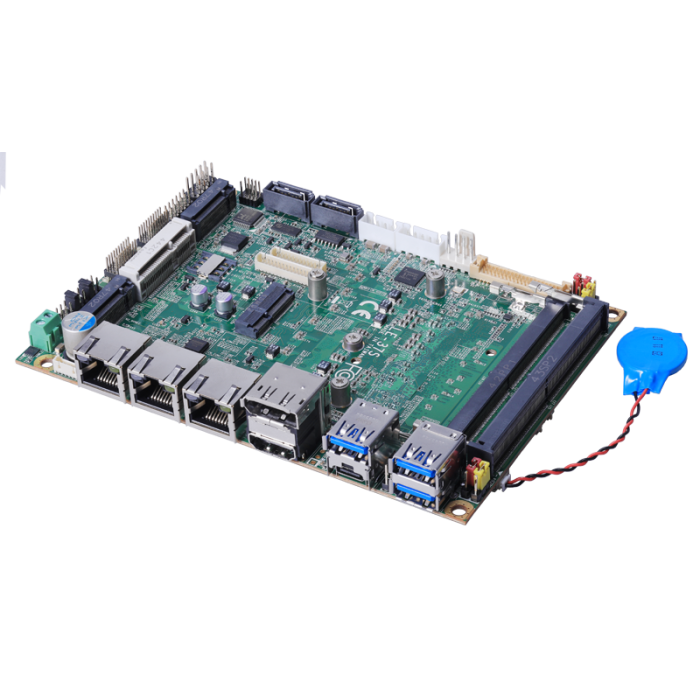

3.5" SBC Intel Ultra 7 165U Fan 3x 2.5GLAN 3xM.2 3xUSB

SKU:
LE-37SU7
Fabrikant:
Commell
  • Processor : Core Ultra
  • Max memory : 96GB
  • Type SBC : 3,5"
  • Operating Temperature : 0°C/+60°C
3.5" SBC Intel Ultra 7 165U Fan 3x 2.5GLAN 3xM.2 3xUSB
Please contact us for the delivery time.
Details
More Information
Downloads

Introduction

LE-37S
LE-37S is a 3.5” Motherboard which supports Ultra H/U Processor(MTL-H/U Platform), integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3, Type C with AHCI function for a system.

New feature for Meteor Lake
Ultra Processor Features up to 12 cores/14 threads, with built-in NPUs for AI accelerator.And feature 3D performance hybrid architecture, combining two core microarchitectures on a single processor chip, prioritizing and distributing workloads to optimize performance.

All in One multimedia solution
The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, two M.2 2280 slot (PCIe Gen4), and supports Type C (Alt mode), HDMI, and High Definition Audio, to meet the very requirement of the multimedia application.

Meteor Lake support Windows10 & 11 64bit and Linux
Intel recommends using Windows 10 & 11 64bit. It may lose some drivers if you use other Windows version.
More Information
  • Processor
    ProcessorCore Ultra
    Processor serieMeteor Lake
    Base Frequencyup to 4.9GHz Turbo
    Number of cores12
    TDP15W Base, up to 57W Turbo
    chipsetSoC
  • Memory
    Memory typeDDR5
    Memory slots2
  • Video
    ConnectionsDisplayPort
    1x DisplayPort++
    1x Type-C (DP alt. Mode)
    1x eDP

    HDMI
    1x HDMI

    LVDS
    1x LVDS by header
    ChipsetIntel® Graphics
  • Main features
    CharacteristicsFeatures
    • Support Intel® Core™ Ultra Processor (MTL-H/U Platform)
    • 2 x DDR5 SO-DIMM up to 5600 MHz 96GB
    • Integrated DisplayPort++, HDMI, eDP, LVDS, Type-C (DP alt.) for four display support
    • 3 x Intel® 2.5G Gigabit LAN
    • 1 x MiniPCIe (support mSATA) with SIM Slot
    • 2 x M.2 2280 Key M support PCIe Gen4 for NVMe
    • 1 x M.2 2230 Key E
    • 2 x SATA3, 2 x USB2.0, 3 x USB3.2 Gen2, 4 x COM,1 x GPIO
    • Intel® Core™ Ultra processors feature 3D performance hybrid architecture
    • Advanced Intel® AI Boost NPU for low-power AI acceleration and CPU/GPU off-load
    • DC input 9~35V
  • Expansion
    expansion slotsMini PCIe
    1x MiniPCIe with SIM Slot (support mSATA)
    Note: mSATA and SATA2 can’t use at the same time

    M.2
    1x M.2 (Key E 2230) for Wi-Fi and Bluetooth
  • Ports & Interfaces
    GPIO Interface1x GPIO
    serial ATA interface2x SATA3
    Watchdog timerGenerates a system reset with internal timer for 1 min/s ~ 255 min/s
    LAN Interface3
    USB 2.0 ports2
    USB 3.x ports3
    Audio interfaceRealtek ALC888S HD Audio
    External I/OEthernet Ports
    1x Intel® I226-LM Gigabit LAN (up to 2.5GbE)
    2x Intel® I226-V Gigabit LAN (up to 2.5GbE)

    USB
    3x USB3.2 Gen2
    Internal I/OUSB
    2x USB2.0

    Serial
    2x RS-232
    2x RS-232/422/485

    SMBus
    1x SMBus

    LCD Connector
    1x LCD inverter connector

    eDP
    1x eDP header
  • Storage
    Storage InterfaceSATA
    2x SATA3

    M.2
    2x M.2 (Key M 2280) support PCIe Gen4 for NVMe

    MSATA
    1x mSATA port (mux with mini-PCIe)
  • Mechanical specifications
    Dimensions146mm x 101mm (L x W)
    Type SBC3,5"
  • Electrical specifications
    Input rangeDC input 9~35V
  • Environmental specification
    Storage temperature-20°C/+80°C
    Operating Temperature0°C/+60°C
    relative air humidity10%~90%, non-condensing
  • General data
    ManufacturerCommell
    ApplicationAutomation
    Warranty18 Months
