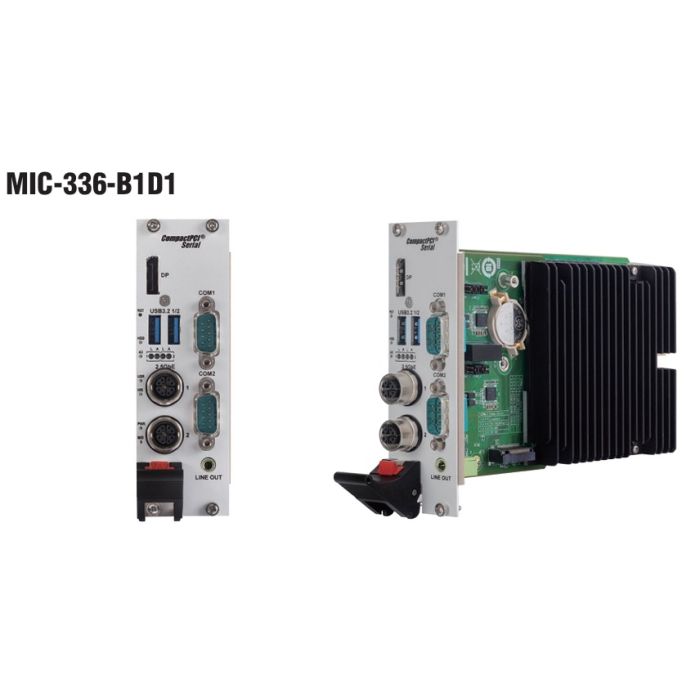

    main product photo

    3U CPCI-Serial Intel x7835RE 8C 16GB 2M12-LAN 2USB 2COM M.2

    SKU:
    MIC-336-B1D1
    Fabrikant:
    Advantech
    • Processor : Intel Atom
    • Max memory : 16GB
    • Type SBC : CompactPCI serial
    • Operating Temperature : -40°C/+70°C
    3U CPCI-Serial Intel x7835RE 8C 16GB 2M12-LAN 2USB 2COM M.2
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    More Information
    • Processor
      ProcessorIntel Atom
      Processor serieAmston Lake
      Base Frequencymax. 3.6GHz
      Number of cores8
      TDP12W
      chipsetSoC
    • Memory
      Memory typeDDR5
    • Video
      ConnectionsDisplayPort
      1x DisplayPort, 4096x2160 @60Hz
      ChipsetIntel® UHD Graphics
    • Main features
      Characteristics• Intel® Atom X7433RE/ X7835RE platform
      • Max 16GB DDR5 4800 MT/s, with ECC
      • 1x DP, 2x USB3.2, 2x 2.5GbE RJ45/M12 LAN ports on front 4HP panel
      • 2x COM, 1x Line out on front 8HP panel
      • 1x On board SATA 3.0/PCIe 2.0 M.2 storage connector on XTM board, Compatible with 2280/2242 size
      • Reserved 1x 64G eMMC 5.1 storage , 1x TPM2.0, 1x wafer for USB 2.0 function
      • Supports fanless application with optimized heatsink design
      • Designed to meet EN50121-4 and EN50155
      • PICMG CompactPCI Serial(CPCI-S.0 R2.0) compliant
    • Ports & Interfaces
      LAN Interface2
      USB 3.x ports2
      External I/OEthernet
      2x 2.5GBASE-T M12 on front panel

      USB
      2x USB3.2 Gen1

      Serial
      2x COM Ports, DB9
      Internal I/OCompactPCI Serial Backplane Resources
      PCI-Express
      4x PCIe x1

      USB
      1x USB3.2 @ 5Gbps speed
      4x USB2.0 @ 480MHz speed

      SATA Port
      1x SATA 3.0

      Ethernet
      1x 2.5 GbE to backplane via P6

      To P1-P6 Signal
      P1 - 1x PCIe3.0 x1, 1x SATA 3.0, 1x USB3.2 gen1, 1x USB2.0, reserve 1x I2C, SMBUS
      P2 - 1x PCIe3.0 x1, 3x USB2.0, 1x UART, reserve 5x GPIO
      P3 - na
      P4 - 2x PCIe2.0 x1
      P5 - 4x PCIe clock REQ
      P6 - 1x 2.5GbE
    • Storage
      Storage InterfaceM.2
      1x onboard 2280/2242 M.2 type module( (M-key socket), SATA 3.0
      1x channel to CPCI-S backplane
    • Mechanical specifications
      Type SBCCompactPCI serial
      Bus Type3U CompactPCI Serial
    • Environmental specification
      Storage temperature-40°C/+85°C
      Operating Temperature-40°C/+70°C
      relative air humidityOperating: 95% @40 °C, non-condensing
      non-Operating: 95 % @ 60 °C, non-condensing
    • Certificates
      certificatesVibration
      2Grms

      Shock
      10G, 11ms, each axis three times, operation mode

      Regulatory Conformance
      FCC Class A, CE, RoHS

      Compliance Standards
      PICMG® CompactPCI® Serial
    • Software support
      Operating SystemWindows 11, Windows 10, Ubuntu 22.04, Vxworks
    • General data
      ManufacturerAdvantech
      ApplicationAutomation
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
