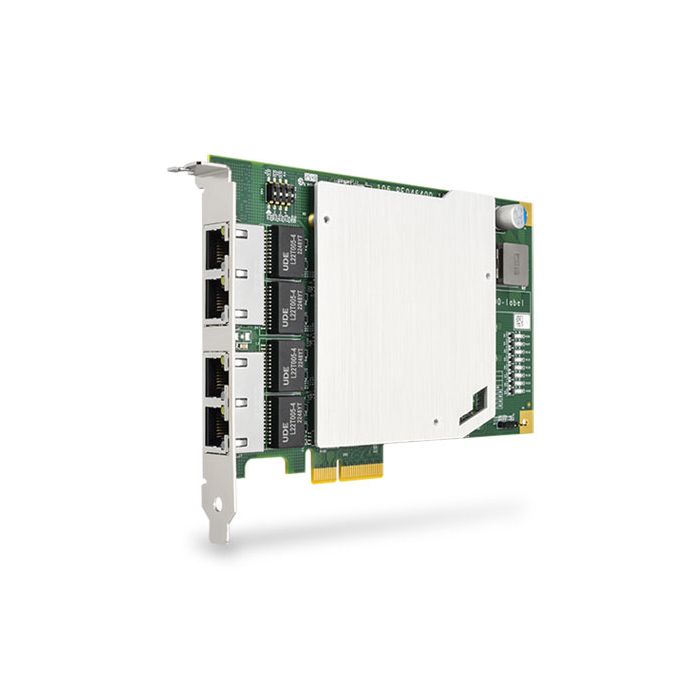

    main product photo

    4-port 5GBASE PoE(25.5W) adapter Realtek RTL-8126 PCIe-x4

    SKU:
    PCIE-POE464AT
    Fabrikant:
    Neousys
    • Number of ports : 4
    • I/O Type : Lan (ethernet)
    • Bus Type : PCIe
    • Type Mezzanine : PCIe
    4-port 5GBASE PoE(25.5W) adapter Realtek RTL-8126 PCIe-x4
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    More Information
    • Main features
      CharacteristicsFeatures
      • 4x IEEE 802.3at 5GBase-T Ethernet Ports with four Realtek RTL-8126 Controllers
      • Compliant with IEEE 802.3at - deliver up to 25.5W for each port
      • Supporting different speeds: 5G / 2.5G / 1G / 100M / 10M
      • PCIe x4 Gen3 Interface
      • Power On/Off control per Port (PoE+)
      • Support Jumbo Frames up to 16kB
      • Suppor IEEE 1588 PTP V1/V2 & IEEE 802.1AS time synchronization
      • Fanless, 0°C/+55°C operating temperature
    • Ports & Interfaces
      External I/OEthernet Ports
      4x IEEE 802.3at 5GBase-T Ethernet Ports
      PoE availableYes
      Network Interface ControllerRealtek RTL-8126
    • Mechanical specifications
      Dimensions167.7mm (W) x 111.2mm (H)
      Bus TypePCIe
      Type MezzaninePCIe
    • Environmental specification
      Operating Temperature0°C/+55°C
    • Certificates
      certificatesCE Class A, according to EN 55032/55035
      FCC Class A, according to FCC Part 15, Subpart B
    • General data
      ManufacturerNeousys
      Warranty24 Months
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
