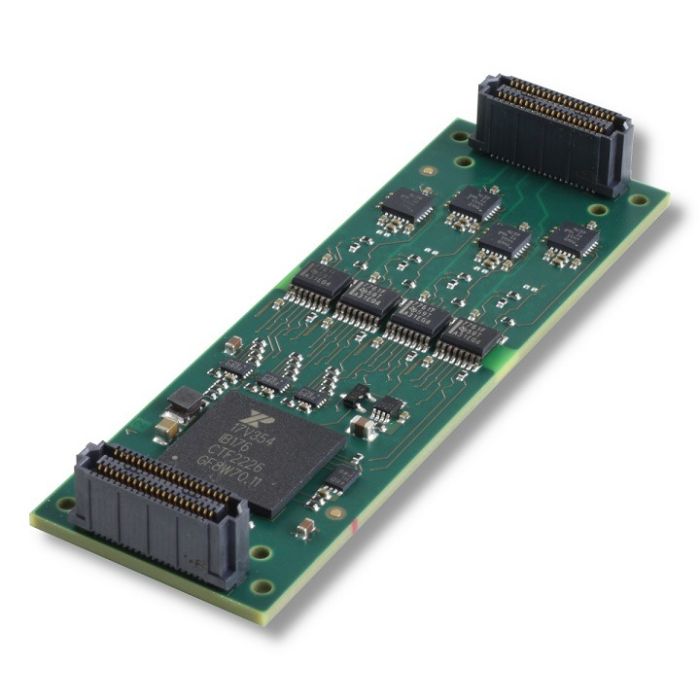

4CH isolated RS232/422/485 single-width QMC air-cooled

SKU:

TQMC402-10R-A

Fabrikant:

Tews

Please contact us for the delivery time.

Details

More Information

Main features

Characteristics	Features • 4x UART High-Speed Serial RS-232/422/485 Channels • VITA 93.0 compatible Small Form Factor Mezzanine Card (QMC) • Channels isolated from system & against each other • Data rates up to 20Mbps (Asynchronous) • Software selectable 120Ω termination • single-width QMC, air-cooled

Ports & Interfaces

External I/O Serial
4x high-speed isolated RS-232/422/485 channels
Mechanical specifications

Dimensions 26mm (W) x 78.25 mm (L)
Bus Type PCIe
Type Mezzanine QMC
Environmental specification

Operating Temperature -40°C/+85°C
General data

Manufacturer Tews

Price on request
