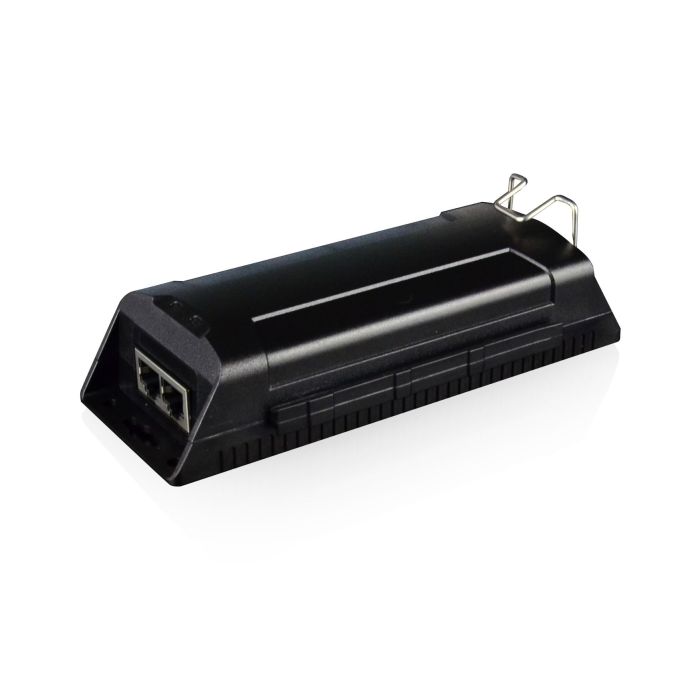

main product photo

60W Gigabit Midspan PoE Injector Microsemi

SKU:

UTP7201GE-PSE60-M

Fabrikant:

Utepo

Manufacturer : Utepo
Device : PoE Inverter

Lokaal op voorraad

Details

More Information

Downloads

More Information

Main features

Characteristics	• PoE++ power supply standard; Output power consumption up to 60W • Ultra PoE、IEEE 802.3af/at、IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T • Higher conversion efficiency(90%); Lower heat radiation • Working Temperature: -10℃～55℃ • 6KV lightning protection; 8KV ESD • No fan, no noise, dustproof • LEDs indicate operation status

Ports & Interfaces

LAN Interface	1
PoE available	Yes
POE capability	PoE • PoE Power Supply Type: End-span/Mid-span • PoE Power Output: DC 54V/60 watts max. If 60W PoE only support MAXIM chip solution; • If 30W PoE(af/at standard) can support all standard device • Power Pin Assignment: Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+)

Mechanical specifications

Dimensions 160mm (l) × 64mm (w) × 60mm (h)
Product features

Weight 200g
Environmental specification

Storage temperature - 40℃~85℃
Operating Temperature -10°C/+55°C
relative air humidity 0~90%

Certificates

standards	Surge Protection • P Power：1KV(Differential Mode),2KV(Common Mode)1.2/50us，8/20us • Ethernet：2KV(Differential Mode),6KV(Common Mode)10/7000us ESD • 1a Contact Discharge Level 3 • 1b Air Discharge Level 3 • Per: IEC61000-4-2

General data

Manufacturer Utepo
Warranty 24 Months

Downloads

Manual	PoE-Injector-60W.pdf

€143.58 €118.66
