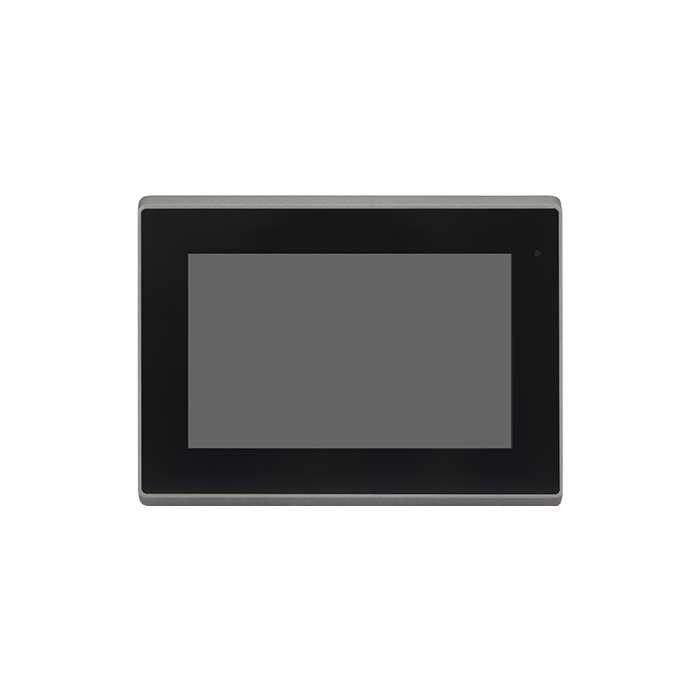

main product photo

7" WVGA FPD PCAP Display VGA DVI DP HDMI 9~36V DC

SKU:

ARCDIS-107AP

Fabrikant:

Aplex

Screen size : 7"
Touchscreen type : Capacitive Touch
Casing : IP66 Compliant Front Panel,
Aluminum Die-casting Chassis
Operating Temperature : 0°C/+50°C

7" WVGA FPD PCAP Display VGA DVI DP HDMI 9~36V DC

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Display

Screen size	7"
Touchscreen type	Capacitive Touch
Contrast Ratio	1000:1
Luminance (cd/m2)	350
Viewing Angle (H/V°)	160°(H)/160°(V)
Max screen resolution	800 x 480

Video

Connections VGA
1x VGA

DVI-D
1x DVI-D (share with HDMI)

DisplayPort
1x DisplayPort

HDMI
1x HDMI (share with DVI-D)

Main features

Characteristics	USB 1x USB type B for touch control Optional 1x Speaker 1x RS-232 DB-9 for touch control Features • Solid aluminum die-casting chassis • Variety of LCD panel size selections • IP66 compliant front panel • VGA, DVI, HDMI and DP input • Wide range DC 9~36V power input

Mechanical specifications

Dimensions	202 x 149 x 40 mm
Casing	IP66 Compliant Front Panel, Aluminum Die-casting Chassis
Mounting	Panel Mount / VESA Mount 75 x 75

Product features

Weight 1.06kg
Electrical specifications

Input range DC 9~36V
Power consumption ARCDIS-107AP: 4W( MAX)
Environmental specification

Storage temperature -30°C/+70°C
Operating Temperature 0°C/+50°C
General data

Manufacturer Aplex
Application Automation, IoT
Warranty 24 Months

Downloads

datasheet	ARCDIS-107APRG(H)_V2.3.pdf

Price on request
