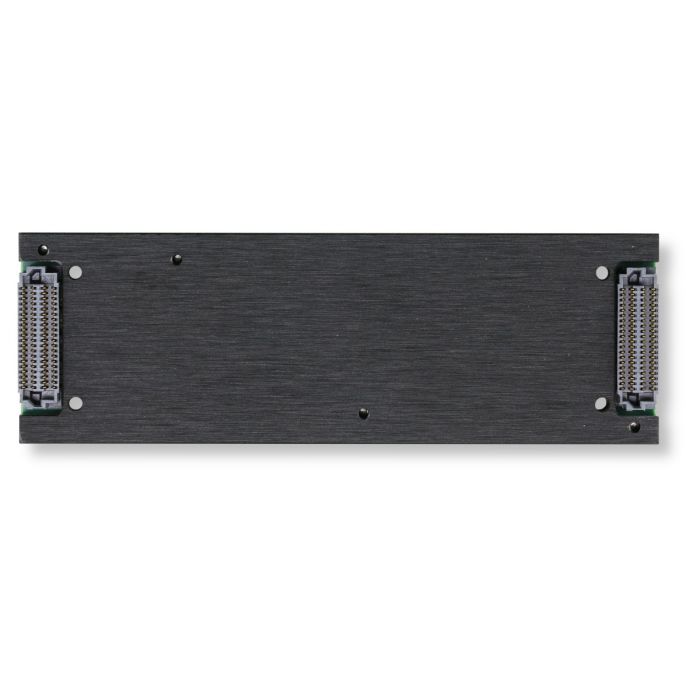

8xAI 16bit 4xAO 16bit 16xTTL I/O QMC cond-cooled

Please contact us for the delivery time.

Add to Compare

Details

More Information

Main features

Characteristics	Features • Standard single QMC moduile conforming to VITA93.0 • PCIe 2.1 compliant interface • DM Support • 16x TTL lnes, 5-V tolerant, ESD-protected • 8-ch 16-bit analog input, 8-ch 16-bit analog output • Factory correction data for ADC and DAC

Ports & Interfaces

External I/O

TTL - lines
16x TTL lines, 5V-tolerant, ESD protected
Each I/O line individually configurable
3 output states (high, low, and tristate)

Analog Input 16-bit
8-ch 16-bit analog input
Single-ended and differential mode
Individually selectable voltage input ranges (up to ±12.5 V)
Sampling rate up to 1Mbps

Analog Output 16-bit
8-ch 16-bit analog output
Individually selectable voltage output ranges (up to ±10.8 V)
10μs conversion time

Mechanical specifications

Dimensions 26mm (W) x 78.25 mm (L)
Bus Type PCIe
Type Mezzanine QMC
Environmental specification

Operating Temperature -40°C/+85°C
General data

Manufacturer Tews

Price on request
