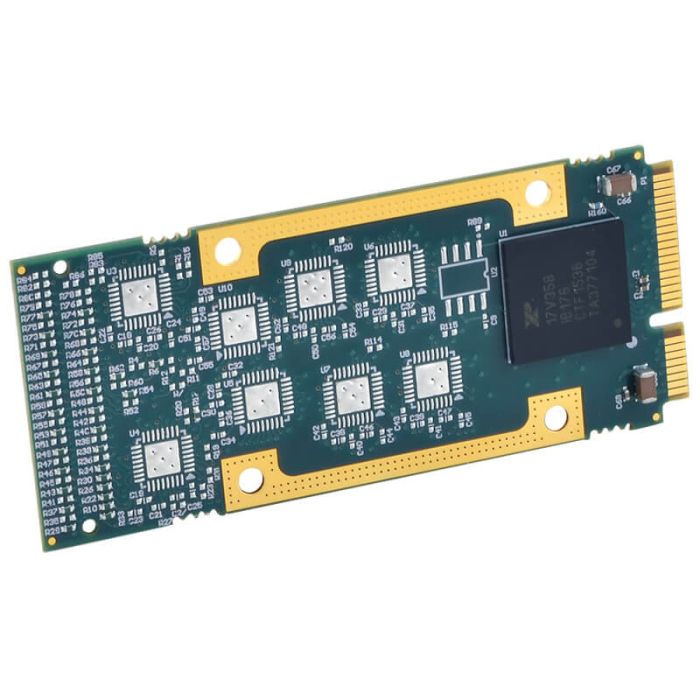

AcroPack 8x non-isolated RS-422/485 ports module

SKU:

AP522E-LF

Fabrikant:

Acromag

Number of ports : 8
I/O Type : Serial
Bus Type : PCIe
Type Mezzanine : IndustryPack

AcroPack 8x non-isolated RS-422/485 ports module

Note: a conduction cooled application with an AcroPack requires heatsink model AP-CC-01

Please contact us for the delivery time.

Add to Compare

Details

More Information

Downloads

More Information

Main features

Characteristics

Features
• Eight asynchronous, full duplex RS422B serial ports (supports RS485)
• 256-byte transmit FIFO buffers256-byte receive FIFO buffers
• Programmable baud rate (up to 20Mbps)
• Individual handshake lines (RTS, CTS) on each channel
• Line-break and false start-bit detection
• Failsafe receivers
• Built-in termination and bias resistorsConsult factory for no termination
• 16550 compatible register set
• High-density design lowers per-port costs and saves IP carrier card slots for other functions.
• 256-byte FIFO buffers minimize CPU interaction for improved system performance.
• Extended temperatures deliver dependable operation in extreme conditions.

Ports & Interfaces

External I/O	RS-422/485 Depending on the carrier board 8x independent, non-isolated serial ports with a common single return connection

Mechanical specifications

Dimensions 70.0mm (L) x 30.0mm (W)
Bus Type PCIe
Type Mezzanine IndustryPack
Environmental specification

Storage temperature -55°C/+125°C
Operating Temperature -40°C/+85°C
relative air humidity 5% to 95% non-condensing
Software support

Operating System Windows, Linux, VxWorks
General data

Manufacturer Acromag
Warranty 24 Months

Downloads

datasheet	AP522-Octal-Serial-RS422-RS485-Communication-PCIe-IO-Module.pdf
