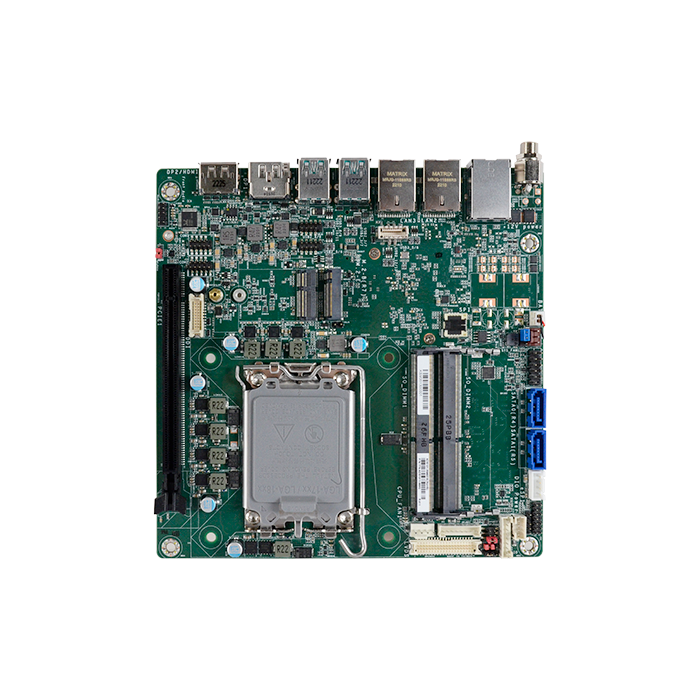

ADS101-R680DB, 12/13. Gen, M-ITX, R680E, 12V, -5~65°C
Processor :
Intel Core
Max memory :
64GB
Type SBC :
MicroATX
Operating Temperature :
-5°C/+65°C
ADS101-R680DB, 12/13. Gen, M-ITX, R680E, 12V, -5~65°C
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
Processor
Processor Intel Core Processor serie Alder Lake, Raptor Lake Socket type LGA1700 Base Frequency 1.80GHz Number of cores 24 TDP 65W chipset R680E
Memory
Memory type DDR4 Memory slots 2
Video
Connections DisplayPort
1x DP++
1x DP++/HDMI
DP++: resolution up to 4096x2304 @60Hz
LVDS
1x LVDS/eDP
LVDS: resolution up to 1920x1200 @60Hz
eDP: resolution up to 4096x2160 @ 60Hz
Extension Port
1x DFI display extension port (DP/ HDMI/VGA available)Chipset Intel® HD Gen 9 Graphics
Expansion
expansion slots PCIe
1x PCIe x16 (Gen 5)
M.2
1x M.2 2230 E Key (USB/PCIe x1)
Ports & Interfaces
RAID 0, 1, 5, 10 LAN Interface 2 USB 2.0 ports 4 USB 3.x ports 6 Audio interface 1 x Line-out External I/O LAN
1x 2.5GbE (RJ-45)
1x GbE (RJ-45) (2x by Opt.)
USB
4x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)Internal I/O Serial
2 x RS-232/422/485 (without power) (2.54mm pitch)
USB
4x USB 2.0 (2.54mm pitch)
2x USB 3.2 Gen1 (R680E/Q670E only)
DIO
1x 8-bit DIO
Storage
RAID 0, 1, 5, 10 Storage Interface M.2
1x M.2 2280 M Key (PCIe Gen4 x4/SATA)
1x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
SATA
2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
Mechanical specifications
Dimensions Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7") Type SBC MicroATX
Electrical specifications
Input range Single 12V +/-10% DC (ADS101)
Environmental specification
Storage temperature -40°C/+85°C Operating Temperature -5°C/+65°C relative air humidity Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
Certificates
certificates CE, FCC Class B
General data
Manufacturer DFI Application Automation, IoT
