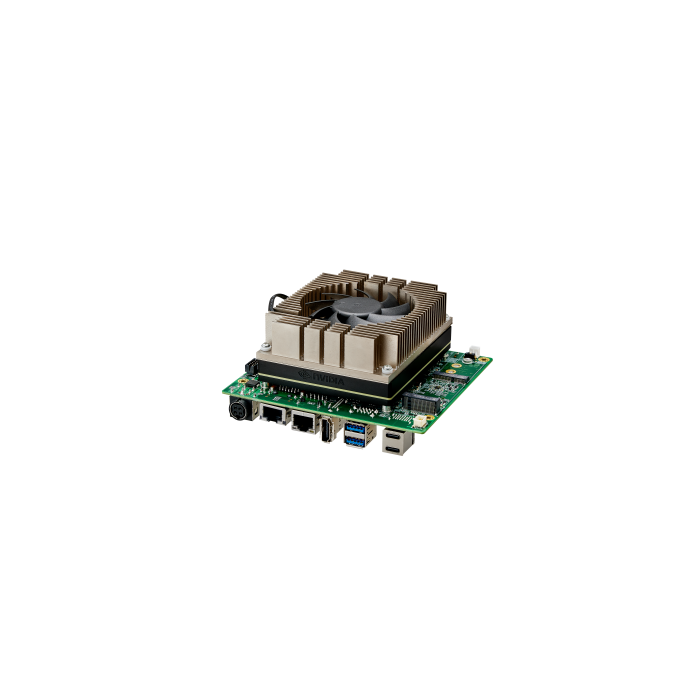

AGX ORIN 32GB, HDMI, 1 x GbE, 1 x 10GbE, -25°C ~ 80°C

SKU:
AIB-MX13-1-A1
Fabrikant:
aetina
  • Processor : NVIDIA Jetson
  • Max memory : 32GB
  • Operating Temperature : -25°C/+80°C
Please contact us for the delivery time.
Details
More Information
Downloads
● 8 x AI performance enables AI inference with low latency
NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin module enables server-class AI inference at the edge with low latency.

● Comprehensive M.2 expansion and 1x10GbE LAN port
AIB-MX13/23 is a platform with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 M-Key for storage, and 1x M.2 E-Key for Wifi/Bluetooth/GPS. For network, on-board 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.

● Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-MX13/23 supports temperature ranging from -25°C to 80°C and wide input power from 9 to 36VDC.
More Information
  • Processor
    ProcessorNVIDIA Jetson
    Number of cores8
  • Memory
    Memory typeLPDDR5
  • Video
    ConnectionsHDMI
    1 x HDMI 2.1 Type A
    Chipset1792-core NVIDIA Ampere GPU with 56 Tensor Cores
  • Main features
    CharacteristicsAI Performance
    200 TOPS
  • Expansion
    expansion slotsM.2
    1 x M.2 B-Key 3042/3052 (support USB3.2 Gen1, USB 2.0)
    1 x M.2 E-Key 2230 (support PCIe x1 Gen4, USB 2.0)
  • Ports & Interfaces
    LAN Interface2
    USB 2.0 ports1
    USB 3.x ports4
    External I/OLan
    1 x RJ-45 GbE port
    1 x RJ-45 10GbE port

    I/O Interfaces
    2 x I2C
    1 x I2S
    1 x SPI
    5 x GPIO
    1 x 3.3VDC/0.5A
    2 x 5VDC/0.5A
    1 x 12VDC/0.5A

    USB
    2 x USB 3.2 Gen1 Type A
    1 x OTG Type-C
    1 x USB 3.2 Gen 2 Type-C
    1 x USB 2.0

  • Storage
    Storage InterfaceeMMC
    1 x 64GB eMMC 5.1

    M.2
    1 x M.2 M-Key 2280 (support NVMe, PCIe x2 Gen4)

    SD Card
    1 x microSD slot
  • Mechanical specifications
    Dimensions131 x 120 x 62.9 mm (5.16 x 4.72 x 2.47 in)
  • Product features
    Weight0.701kg (1.54lb) w/ Fansink
  • Electrical specifications
    Input rangeDC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector
    Power consumptionIdle: 6.655W, Full Loading: 52.25W*
  • Environmental specification
    Storage temperature-40°C /85°C
    Operating Temperature-25°C/+80°C
    relative air humidity95% @ 40°C Related Humidity, Non-condensing
  • Certificates
    standardsVibration
    1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    Shock
    10 G, IEC 60068-2-27, half sine, 11 ms duration
    certificatesCE / FCC Class A / UKCA
  • Software support
    Operating SystemUbuntu 20.04
  • General data
    Manufactureraetina
    ApplicationAutomation, Datacenter , IoT, In-vehicle
