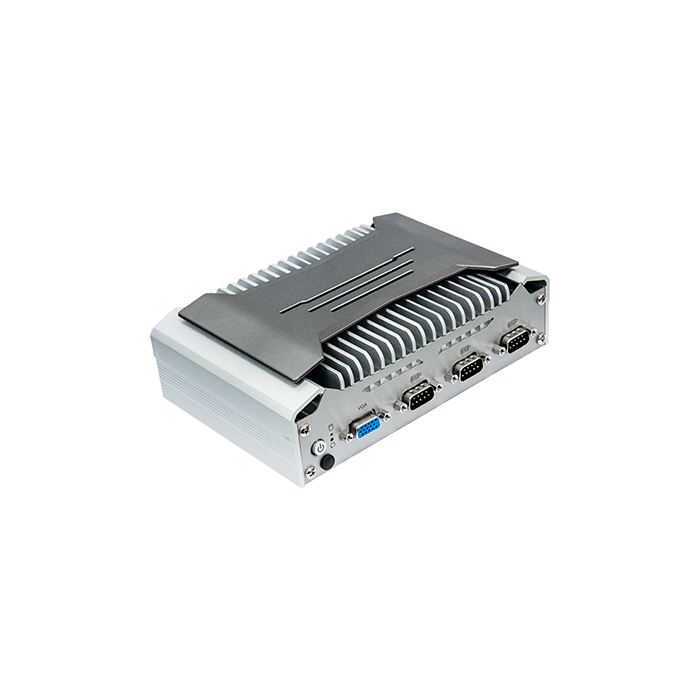

EC70A-TGU4043-I3E-8: i3-1115G4E, 8GB, 3 LAN, DC 9~36V, TPM2.
-
Processor :
Intel Core
-
Max memory :
8GB
-
Operating Temperature :
-20°C/+85°C
EC70A-TGU4043-I3E-8: i3-1115G4E, 8GB, 3 LAN, DC 9~36V, TPM2.
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Processor
| Processor | Intel Core |
|---|
| Processor serie | Tiger Lake |
|---|
| Socket type | BGA1449 |
|---|
| Base Frequency | 2.20GHz |
|---|
| Number of cores | 2 |
|---|
| TDP | 15W |
|---|
-
Memory
| Memory type | DDR4 |
|---|
| Memory slots | 1 |
|---|
-
Video
| Connections | HDMI
2 x HDMI
HDMI: resolution up to 4096x2160@30Hz
1 x VGA
VGA: resolution up to 1920x1200@60Hz |
|---|
| Chipset | Intel® Iris® Xe Graphics |
|---|
-
Expansion
| expansion slots | M.2
1 x M.2 2280 M key (PCIe x4)
1 x M.2 3042/3052 B key (USB3.1)
1 x M.2 2230 E Key (PCIe/USB2.0) |
|---|
-
Ports & Interfaces
| LAN Interface | 3 |
|---|
| USB 3.x ports | 4 |
|---|
| External I/O | Lan
3 x GbE (RJ-45)
Serial
2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS232 (DB9, COM 4)
1 x RS-232 or DIO (DB-9, COM 3)
USB
4 x USB 3.1 (type A) |
|---|
-
Storage
| Storage Interface | M.2
1 x M.2 2280 M key (PCIe x4) |
|---|
-
Mechanical specifications
| Dimensions | 181.6mm x 57mm x 118.4mm |
|---|
| Mounting | Wall/VESA/DIN rail mount |
|---|
-
Product features
-
Electrical specifications
| Input range | Wide range 9~36V |
|---|
-
Environmental specification
| Storage temperature | -20°C/+85°C |
|---|
| Operating Temperature | -20°C/+85°C |
|---|
| relative air humidity | 5 to 95% RH (non-con５densing) |
|---|
-
Certificates
| standards | Shock
Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min |
|---|
| certificates | CE, FCC Class A, RoHS |
|---|
-
General data
| Manufacturer | DFI |
|---|
| Application | Automation, IoT, In-vehicle |
|---|
|
