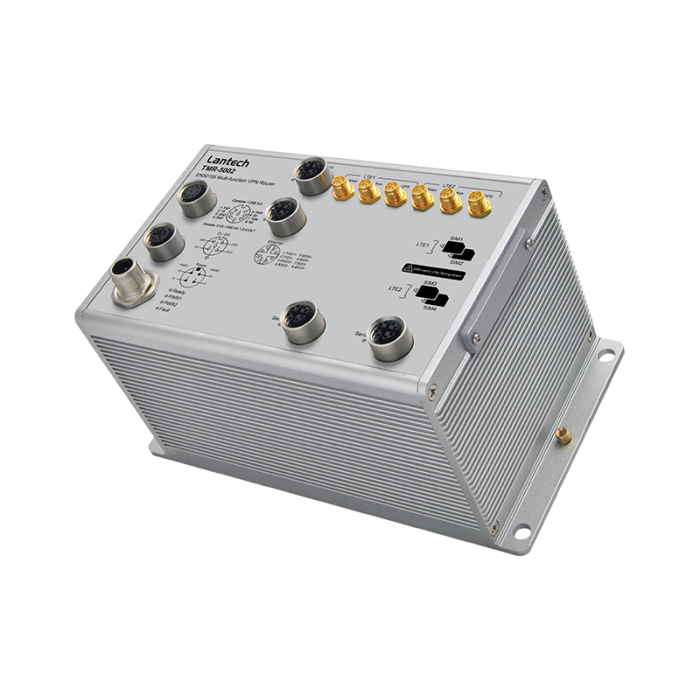

EN50155 Multifunction VPN Router 1xLTE 2x RS232 2x GB LAN

SKU:

8631-027

Fabrikant:

Lantech

Manufacturer : Lantech
Device : Routers

EN50155 Multifunction VPN Router 1xLTE 2x RS232 2x GB LAN

Please contact us for the delivery time.

Add to Compare

Details

More Information

Main features

Characteristics

Specification

● Up to 2xLTE 4G module(4SIMs) + 2xGigabit X-coded ports(incl. 1PD)
● Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
● Up to 2 concurrent modem for 3G/4G LTE Link & GPS
● Built-in 2 serial ports with 2.5K isolation(RS422/RS485) or w/o isolation(RS232)
● VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, PPTP**, L2 over GRE , IPGRE
● Load Balancing built-in 5 mechanism
● Optional EMMC Flash storage on-board**
● Support NAT and Firewall
● Support Modbus gateway on serial ports
● Galvanic isolation on WV model from 16.8V~137.5V input
● Built-in environmental monitoring for router inside info with voltage, current, temperature; LTE graphic signal strength
● Editable login page of captive portal for hot-spot application
● USB port for backup, restore the configuration file and upgrade firmware; Dual image firmware*
● IP 65 /54 Aluminum housing for best heat dissipation and preventing moist ingress
● EN50155/61373/45545 verification for railway application

Environmental

Storage Temperature
● -40°C ~ 85°C (-40°F ~ 185°F)
Operating Temperature
● -40°C ~ 65°C (-40°F ~ 149°F)
Operating Humidity
● 5% to 95% Non-condensing

* Future Release
** Optional

Ports & Interfaces

LAN Interface 2
Mechanical specifications

Dimensions 178 (W) x 99 (D) x 103 (H) mm
Product features

Weight 1000 g
Electrical specifications

Input range Dual DC input, 16.8VDC~137.5VDC for (WV model)
General data

Manufacturer Lantech
Warranty 24 Months

€2,486.55 €2,055.00
