main product photo

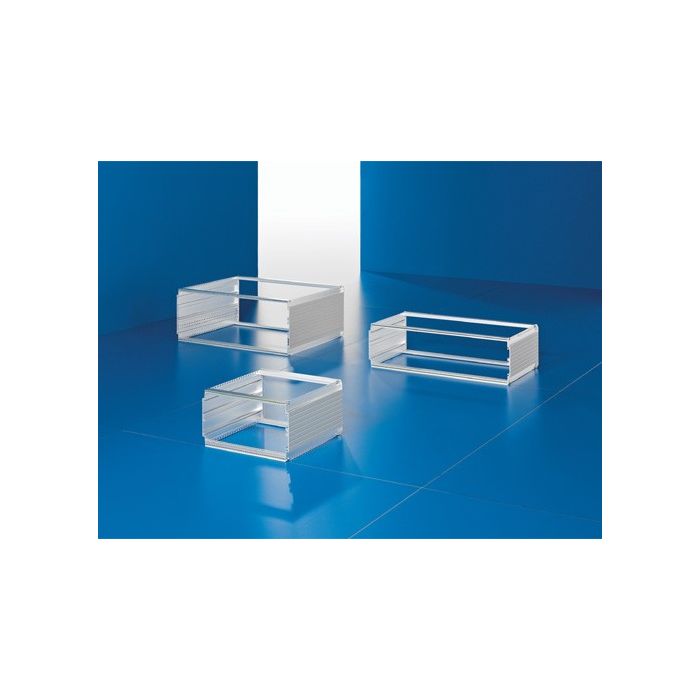

enclosure 3U/63HP/D245 mm

SKU:

3982050

Fabrikant:

HEITEC AG

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Product features

Product type	HeiPac Vario-Module
Product group	HeiPac Vario-Module 3 U
Side panel depth	250,4 mm
Version	Basic enclosure
Handle hole	No
General product information	Technical specifications: May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101. Material/Surface finish: Side panels: Extruded aluminum section, spray finished in RAL 7035 Horizontal rails: Extruded aluminum section, clear-chromated Corner trims: Die-cast zinc, spray-finished in RAL 7035 Side trims: Extruded aluminum section, spray-finished in RAL 7035 Protection category: IP 40 for non-vented version. Supply includes: 2 side panels 4 horizontal rails 4 threaded inserts 2 corner trims assembly parts Equipped as an instrument case Equipped as a rack-mount unit Note: Corner trims, mounting flanges and top and bottom covers must be ordered separately.
Weight	1,624 kg

General data

Manufacturer HEITEC AG
Ean code 4250558923436
Warranty 12 Months

Downloads

datasheet	HEITEC_EPS_Catalogue_EN_Seite_103.pdf

€169.76 €140.30
