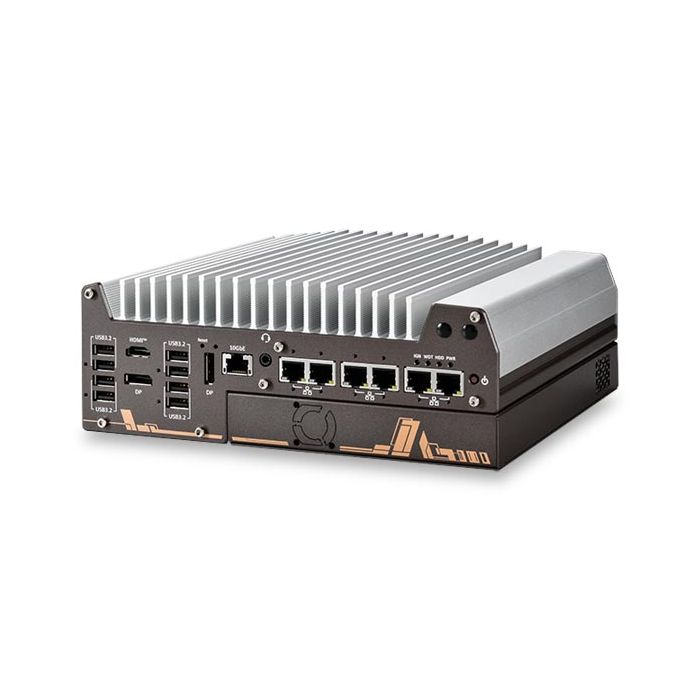

Fanless IPC Core Ultra 200 4xUSB 2xLAN

SKU:
NUVO-11501
Fabrikant:
Neousys
  • SKU : NUVO-11501
  • Processor : Intel Core
  • Max memory : 96GB
Fanless IPC Core Ultra 200 4xUSB 2xLAN
Please contact us for the delivery time.
Details
More Information
Nuvo-11000 series is Neousys' flagship rugged embedded computer built on the Intel® Core™ Ultra 200 series platform. Powered by TSMC's advanced 3nm photolithography, the latest Core™ Ultra 200 processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.

Nuvo-11000 series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.
For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO® interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements.

The advanced Intel® Core™ Ultra 200 processors also bring better energy efficiency to the Nuvo-11000 platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combing a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.
More Information
  • Processor
    ProcessorIntel Core
    Processor serieAlder Lake
    Socket typeLGA1851
    Base FrequencyMax Turbo Frequency 5.3 GHz
    Number of cores24
    TDP35W
    chipsetH810/ Q870
  • Memory
    Memory typeLPDDR5
    Memory slots2
  • Video
    ConnectionsHDMI
    1x HDMI™, supporting 3840 x 2160 resolution

    HDMI
    2x DisplayPort, supporting 4096 x 2304 resolution
    ChipsetIntel® Graphics
  • Main features
    Characteristics• Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
    • Rugged, -25°C to 70°C fanless operation
    • Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
    • Up to 8x USB 3.2 Gen2 ports
    • 4-CH isolated DI and 4-CH isolated DO
    • 1x optional 10GBASE-T Ethernet
    • Expansion Cassette for PCIe add-on card accommodation
    • MezIO® interface for easy function expansion
  • Expansion
    expansion slotsPCI Express
    1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E)

    Mini PCI Express
    1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E)

    Expandable I/O
    1x MezIO® expansion port for Neousys MezIO® modules
  • General data
    ManufacturerNeousys
    ApplicationAutomation, Digital signage, IoT, In-vehicle
