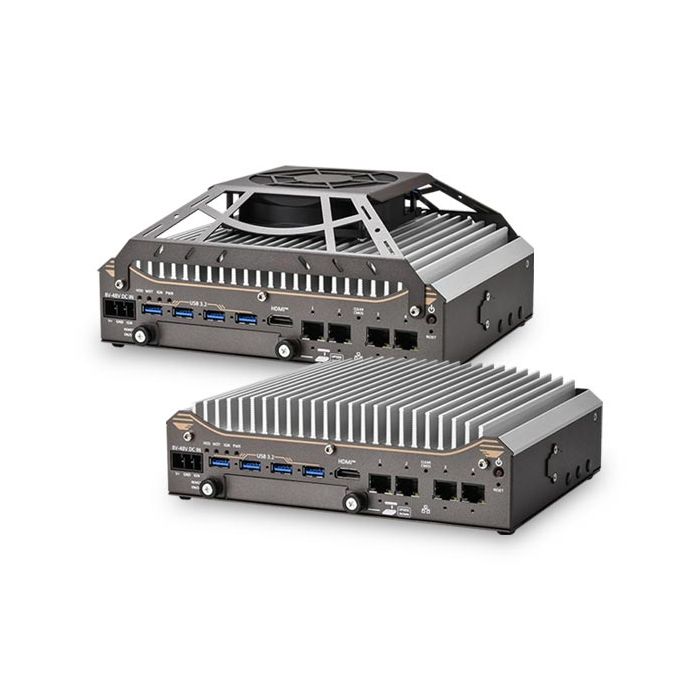

    main product photo

    Fanless IPC Core Ultra 200 6xUSB 4xLAN IGN

    SKU:
    NUVO-11531-IGN
    Fabrikant:
    Neousys
    • SKU : NUVO-11531-IGN
    • Processor : Core Ultra
    • Max memory : 48GB
    • Operating Temperature : -25°C/+60°C
    Fanless IPC Core Ultra 200 6xUSB 4xLAN IGN
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Processor
      ProcessorCore Ultra
      Processor serieArrow Lake
      Socket typeLGA1851
      Base FrequencyCore Ultra 5 245T: max. Turbo 5.1GHz
      Number of cores14
      chipsetH810
    • Memory
      Memory typeDDR5
      Memory slots1
    • Video
      ConnectionsDisplayPort
      1x DisplayPort, up to 4096 x 2304

      HDMI
      1x HDMI, up to 4096 x 2160
      ChipsetIntegrated Intel Xe Graphics (Up to 64EU)
    • Main features
      CharacteristicsFeatures
      • 212mm x 165mm x 63mm low-profile design
      • Intel® Core™ Ultra 200 series 35W/ 65W LGA1851 CPU
      • Rugged, -25°C/+60°C temperature operating range
      • Up to 48GB DDR5-6400 memory
      • 4x 2.5GbE with optional PoE+br> • 4x USB3.2 with screw-lock
      • 1x M.2 2280 Gen4x4 NVMe
      • 1x swappable 2.5” SSD tray for storage
      • 1x PCIe Gen4x8 via SlimSAS 8i (SFF-8654) connector (Nuvo-11588 only)
      • 8V~48V DC input, optional ignition power control
    • Expansion
      expansion slotsMini PCIe
      2x mini PCI Express slots, internal SIM sockets

      M.2
      1x M.2 2230 E-Key socket, supporting WiFi
    • Ports & Interfaces
      LAN Interface4
      USB 2.0 ports2
      USB 3.x ports4
      External I/OEthernet Ports
      4x 2.5GbE Ports, screw-lock
      Port 4 supports Wake-on-LAN (WOL)

      USB
      4x USB 3.2 Ports, with screw-lock
      2x USB 2.0 Ports

      Serial Port
      1x software-programmable RS-232/422/485 Ports
      3x 3-wire RS-232 Ports or 1x RS-422/485 Ports

      Isolated DIO
      4-CH isolated DI and 4-CH isolated DO
    • Storage
      Storage InterfaceSATA
      1x easy-swappable 2.5" HDD/ SSD tray, up to 7mm HDD/ SSD

      M.2
      1x M.2 2280 M-Key slot (PCIe)
    • Mechanical specifications
      Dimensions212mm (W) x 165mm (D) x 63mm (H)
      MountingWall-mount (standard) or DIN-rail mount (optional)
    • Electrical specifications
      Input range8V~48V DC input, 3-pin
      Ignition controlYes - Ignition Control, max. input current for each pin is 20A
    • Environmental specification
      Storage temperature-40°C/+85°C
      Operating Temperature-25°C/+60°C
      relative air humidity10% to 90%, non-condensing
    • Certificates
      standardsVibration
      MIL-STD-810H, Method 514.8, Category 4

      Shock
      MIL-STD-810H, Method 516.8, Procedure I

      EMC
      CE/FCC Class A, according to EN 55032 & EN 55035
    • General data
      ManufacturerNeousys
      ApplicationAutomation
      Warranty24 Months
    Downloads
  • datasheetNuvo-11531_Intel-Core-Ultra-200.pdf
    		•
