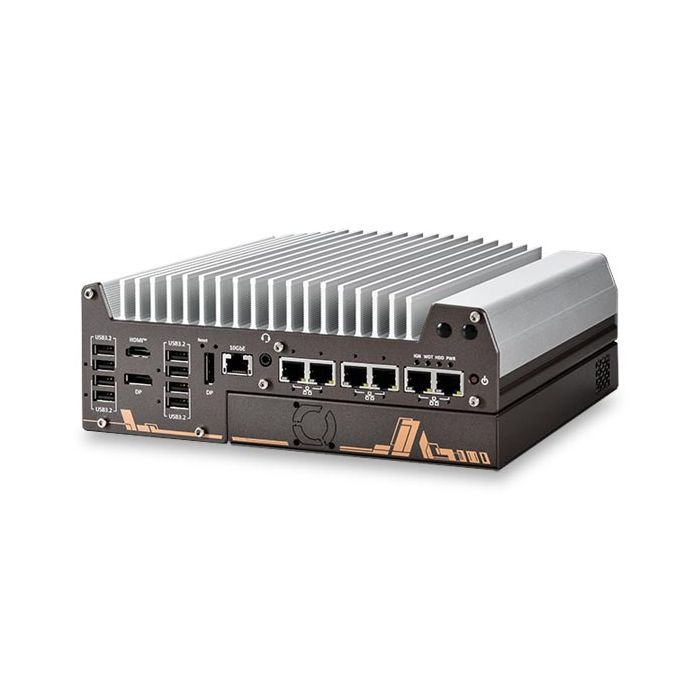

    Fanless IPC Core Ultra 200 8xUSB 6xLAN PCIe PoE

    SKU:
    NUVO-11006E-POE
    Fabrikant:
    Neousys
    • SKU : NUVO-11006E-POE
    • Processor : Core Ultra
    • Max memory : 96GB
    • Operating Temperature : -25°C/+70°C
    Fanless IPC Core Ultra 200 8xUSB 6xLAN PCIe PoE
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Processor
      ProcessorCore Ultra
      Processor serieArrow Lake
      Socket typeLGA1851
      Base FrequencyCore Ultra 5 245T: max. Turbo 5.1GHz
      Number of cores14
    • Memory
      Memory typeDDR5
      Memory slots2
    • Video
      ConnectionsDisplayPort
      2x DisplayPort, up to 4096 x 2304

      HDMI
      1x HDMI™, up to 3840 x 2160
      ChipsetIntegrated Intel Xe LPG Graphics
    • Main features
      CharacteristicsFeatures
      • Supports Intel® Core™ Ultra 200 Series 24C/24T 35W/65W LGA1851 CPU
      • Rugged, -25°C/+70°C operating temperature range
      • Up to 5x 2.5GbE & 1x GigE ports
      • Optional PoE+, supporting 9.5 KB jumbo frame
      • Up to 8x USB 3.2 Ports
      • 4-CH isolated DI and 4-CH isolated DO
      • 1x optional 10GbE Port
      • Expansion Cassette for PCIe add-on card
      • MezIO® interface for easy function expansion
    • Expansion
      expansion slotsPCI Express
      1x PCIe x16 slot, Gen4, 16-lanes PCIe, in Cassette (Nuvo-11002E/ 11006E)

      miniPCIe
      2x mini PCI Express slots

      MezIO
      1x MezIO® expansion port for Neousys MezIO® modules
    • Ports & Interfaces
      LAN Interface6
      USB 3.x ports8
      Audio interface1x 3.5 mm Audio-Out, MIC-in
      External I/OEthernet Ports
      5x 2.5GbE Ports and 1x GbE Port (Nuvo-11006E/DE/LP), with screw-lock

      USB
      8x USB 3.2 Ports (Nuvo-11006LP/E/DE)

      Serial Port
      2x software-programmable RS-232/422/485 Ports
      2x 3-wire RS-232 Ports

      Isolated DIO
      4-CH isolated DI and 4-CH isolated DO

      Audio
      1x 3.5 mm Audio-Out, MIC-in
      PoE availableYes
      POE capabilityPoE Capability
      Port 3-6: Optional IEEE 802.3at PoE+ PSE
      Total power budget: 100W
    • Storage
      Storage InterfaceSATA Ports
      2x internal SATA port for 2.5" HDD/ SSD, supporting RAID 0/1(Nuvo-11000E/11000DE)

      M.2
      1x M.2 2280 M-Key slot (PCIe) for SSD (Nuvo-11006E/DE/LP)
    • Mechanical specifications
      Dimensions240mm (W) x 225mm (D) x 90mm (H) (Nuvo-11000E series)
      MountingWall-mount (standard) or DIN-rail mount (optional)
    • Product features
      Weight3.58 kg (Nuvo-11000E Series)
    • Electrical specifications
      Input range8V~48V DC input, 3-pin
    • Environmental specification
      Storage temperature-40°C/+85°C
      Operating Temperature-25°C/+70°C
      relative air humidity10% to 90% , non-condensing
    • Certificates
      standardsVibration
      MIL-STD-810H, Method 514.8, Category 4

      Shock
      MIL-STD-810H, Method 516.8, Procedure I

      EMC
      CE/FCC Class A, according to EN 55032 & EN 55035
    • General data
      ManufacturerNeousys
      ApplicationAutomation
      Warranty24 Months
    Downloads
  • datasheetNuvo-11000_Intel-Core-Ultra-200.pdf
    		•
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
