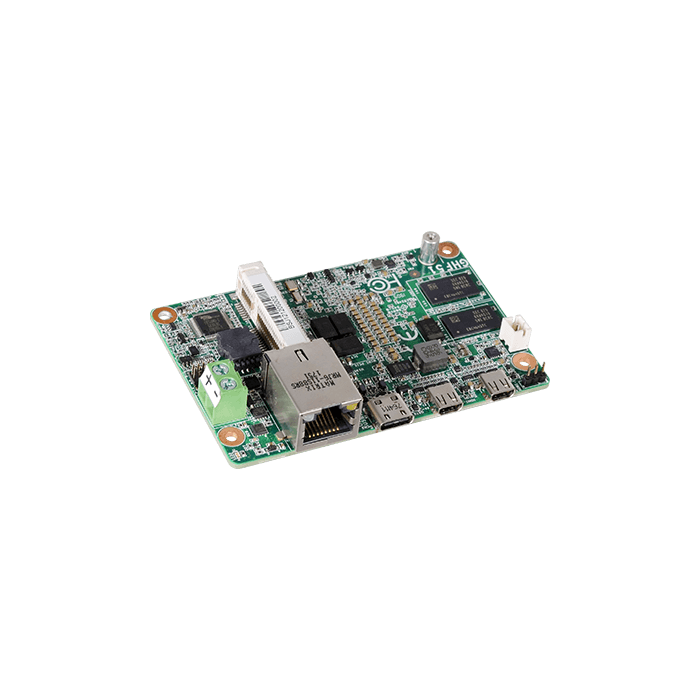

main product photo

GHF51-BN-46R15: R1505G CPU, 12VDC W/4GB, 64GB eMMC, 0~60°C

SKU:

770-GHF512-000G

Fabrikant:

DFI

Processor : AMD
Max memory : 4GB
Operating Temperature : 0°C/+60°C

GHF51-BN-46R15: R1505G CPU, 12VDC W/4GB, 64GB eMMC, 0~60°C

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Processor

Processor AMD
Processor serie Ryzen Embedded
Base Frequency 2.4GHz
Number of cores 2
TDP 12W
Memory

Memory type DDR4

Video

Connections	HDMI 2 x Micro HDMI HDMI 1.4: resolution up to 4096x2160 @ 24Hz
Chipset	AMD Vega GPU with up to 3 computing units.

Expansion

expansion slots PCIe
1 x Full-size Mini PCIe (PCIe Gen2/USB 2.0, opt: USB 3.1 Gen2/USB 2.0)

Ports & Interfaces

LAN Interface	1
USB 3.x ports	1
External I/O	Lan 1 x Intel® I211AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps) USB 1 x Type C USB 3.1 Gen 2

Storage

Storage Interface eMMC
1 x 64GB eMMC
Electrical specifications

Input range Single 12V +/-5% DC
Power consumption Typical: R1505G: 12V @ 0.37A (4.44W), Max: R1505G: 12V @ 1.74A (20.88W)
Environmental specification

Storage temperature -40/+85°C
Operating Temperature 0°C/+60°C
relative air humidity 5 to 90% RH
General data

Manufacturer DFI
Application Automation, Datacenter , IoT, In-vehicle

Downloads

Manual	DFI-GHF51-1.8-SBC-Manual.pdf
datasheet	DFI-GHF51-1.8-SBC-DataSheet.pdf

Price on request
