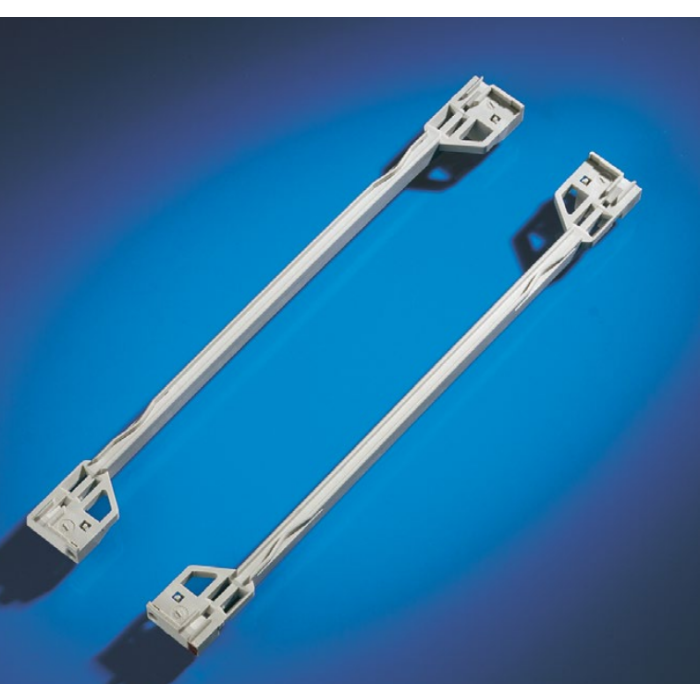

    main product photo

    Guide rail ½HP offset BD220 PU=10pc

    SKU:
    3688060
    Fabrikant:
    HEITEC AG
    Guide rail ½HP offset BD220 PU=10pc
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Product features
      Handle holeNo
      General product informationGuide rails with ½ HP offset for use in telecom applications. This allows PCBs to be populated on both sides. Green guide rails with offset are prescribed in the CompactPCI specification (PICMG 2.11) for the installation of power supply units.
      • For 1.6 – 2.0 mm PCB thickness.
      • 4 HP width for 160/220 mm PCB.
      • Narrow design for maximum air flow.
      • Chambers for the installation of keys.
      • Option of installing ESD contacts to discharge static charges

      Material
      Polycarbonate
      Base material to UL 94-V0

      Note
      Only suitable for use in conjunction with extractor handles type IV, IVs, VII with ½ HP offset.

      + Accessories
      Keys, see page 109
      ESD contact, see page 109
      Extractor handles Type IVs, VII with ½ HP offset, see page 119
    • General data
      ManufacturerHEITEC AG
    Downloads
  • datasheetHEITEC_catalogue_enclosure-technology_2025.pdf
    		•
    €26.33 €21.76
