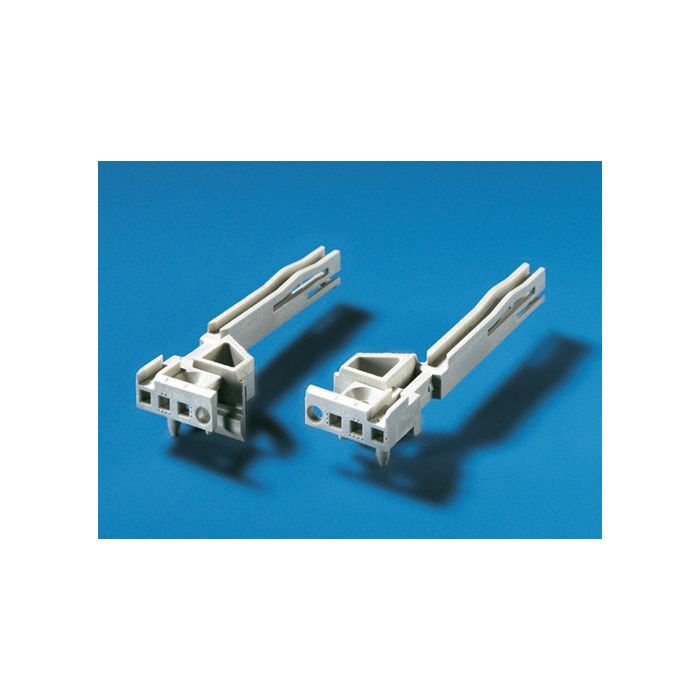

guide rail I/O, D 80mm, grey, bottom

SKU:
3687937
Fabrikant:
HEITEC AG
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Product features
    Product typeGuide rails
    Product groupKeyable guide rails for I/O subracks
    VersionInstallation bottom, for PCB-depth 80 mm
    Handle holeNo
    General product informationFor rear I/O assemblies
    Guide rails 4 HP, keyable to IEEE 1101.10. Prepared to accommodate a ground contact for assembly of a plug-type connection.
    • For 1.6 – 2.0 mm nominal thickness
    • For 80 mm deep PCBs
    • Chambers for the installation of keys
    • Option of installing ESD contacts to discharge static charges
    • Narrow design for maximum air flow
    • For CPCI or VME applications
    Material: Polycarbonate, base material to UL 94-V0
    Note: Only for use in conjunction with type IV, IVs, VII injector/extractor handles.
    Weight0,004 kg
  • General data
    ManufacturerHEITEC AG
    Ean code4250558909270
    Warranty12 Months
