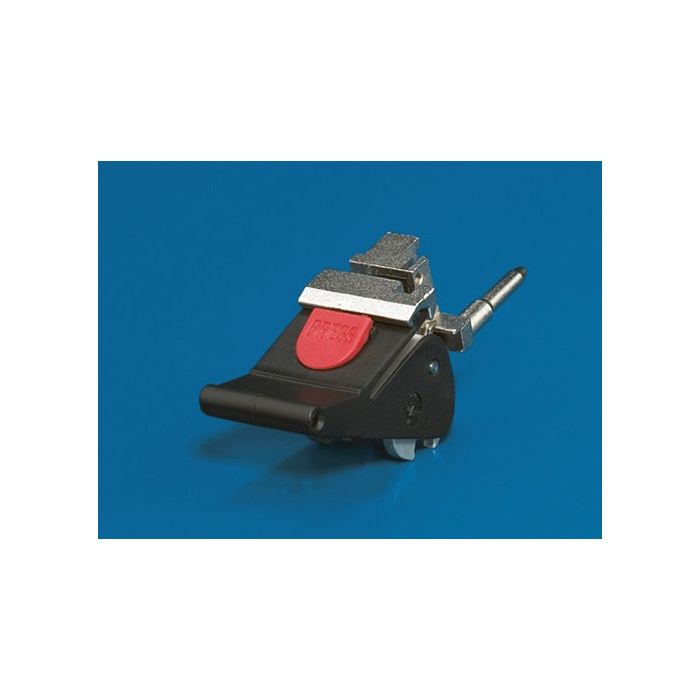

With push-button For inserting and removing connectors with a large number of pins. A metal insert ensures reliable functioning, even at forces of up to 815 N.
Insertion/removal function
Push-button for locking and unlocking the board type plug-in unit (cannot be extracted in the locked position)
Optionally with ½ HP offset PCB attachment, e. g. for component mounting on both sides
Optional integral micro-switch for “live insertion” applications
ES D pin to dissipate static charges before contacting the connectors and for precise positioning of the board type plug-in unit
Keyable
Integral PCB attachment
Bayable
Material: Plastic/metal
Supply includes: Assembly parts.
Note:
Insertion only when used with front horizontal rails, with 10 mm extension (B, B1, B2)
With 3 U front panels, only one extractor handle is required.
