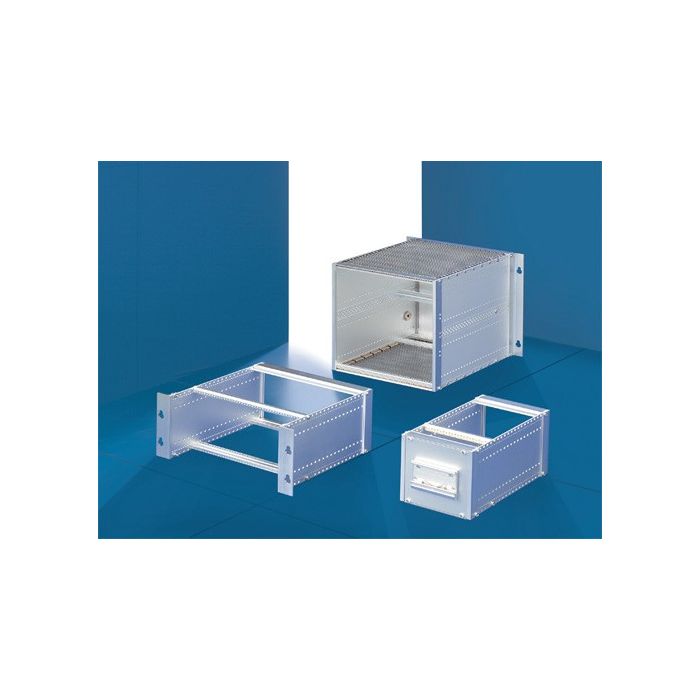

HeiPac Vario Compact. 3U/21HP/285 f. mount-pl
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Product features
| Product type | HeiPac Vario Compact |
|---|
| Product group | HeiPac Vario Compact 3 U, 6 U |
|---|
| Side panel depth | 285 mm |
|---|
| Cover depth | 260 mm |
|---|
| Handle hole | No |
|---|
| General product information | Material/surface finish: - Side panels: 2.5 mm aluminum, clear-chromated
- Flanges and horizontal rails: Extruded aluminum section, clear-chromated
Supply includes: - Side panels
- rear trims
- flanges for mounting plates or top-hat rail adaptors
- EMC front/rear panels
- EMC gaskets
- covers
- horizontal rails
- threaded inserts
- insulating strips.
Tests:
Shock and vibration tested to: - IEC 600-68-2-6 test Fc
- IEC 600-68-2-27 test Ea
Standards:
HeiPac subracks are based on the system dimensions of IEC 60 297-3. |
|---|
| Weight | 1,118 kg |
|---|
-
General data
| Manufacturer | HEITEC AG |
|---|
| Ean code | 4250558908853 |
|---|
| Warranty | 12 Months |
|---|
|
