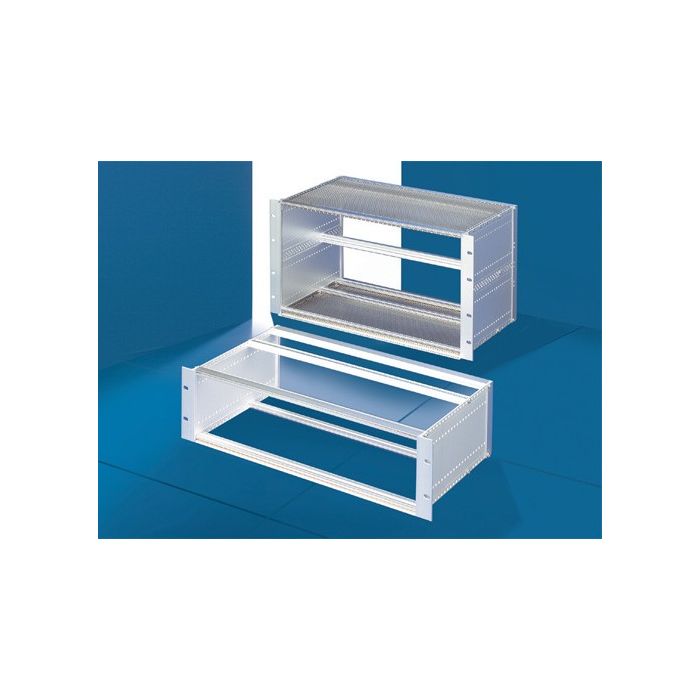

HeiPac Vario Mobile 3 U, 6 U for mobile application
Side panel depth
245 mm
Handle hole
No
General product information
Material/surface finish:
Side panels: 2.5 mm aluminum, clear-chromated
Flanges and horizontal rails: Extruded aluminum section, clear-chromated
Covers: Aluminum, unplated
Supply includes:
Flanges
rear trims
side panels
EMC gaskets
covers
mounting blocks
horizontal rails
threaded inserts
insulating strips
fully assembled
Tests: Shock and vibration tested to:
IEC 600-68-2-6 test Fc
IEC 600-68-2-27 test Ea
The subracks have been tested for use in the German national railway. Testing was conducted in accordance with standard EN 50 155, 1996 (Electronic Equipment in Rail Vehicles). The configuration of the tested subracks conforms to IEC 48 D. Standards: HeiPac subracks are based on the system dimensionsof IEC 60 297-3. Note: The subracks are supplied fully assembled.
