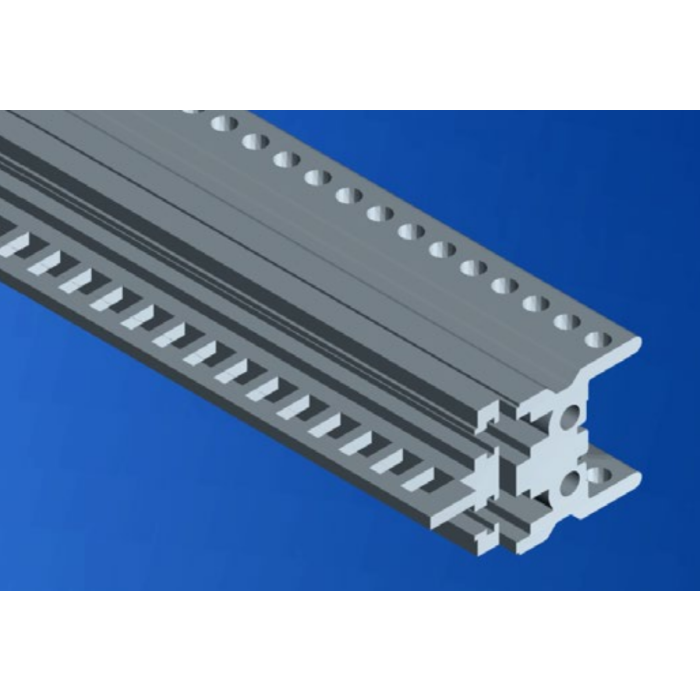

Horizon. rail Vario V-Ext.-4 h=21mm 84HP

SKU:

3688704

Fabrikant:

HEITEC AG

Please contact us for the delivery time.

Add to Compare

Details

More Information

Downloads

More Information

Product features

Handle hole

General product information

For type IV, IVs and VII injector/extractor handle

For subdivision i.e. 6 U in 2 x 3 U. To accommodate guide rails and for the attachment of front panels.

• Front projection 10 mm corresponding to IEEE 1101.10 and IEC 60297-3-102
• HP pitch pattern of holes for the precise installation of guide rails
• M4 thread on end face
• Straight-through core hole

Material
Extruded aluminium section

Surface finish
Clear-chromated

Note
Other sizes available on request.

+ Also required
Assembly screws M4 x 12, packs of 100, order no. 3654300, see page 148

+ Accessories
Threaded inserts, see page 94
Identification strips, see page 95
Gaskets, see page 93

General data

Manufacturer HEITEC AG

Downloads

datasheet	HEITEC_catalogue_enclosure-technology_2025.pdf

€40.70 €33.64
