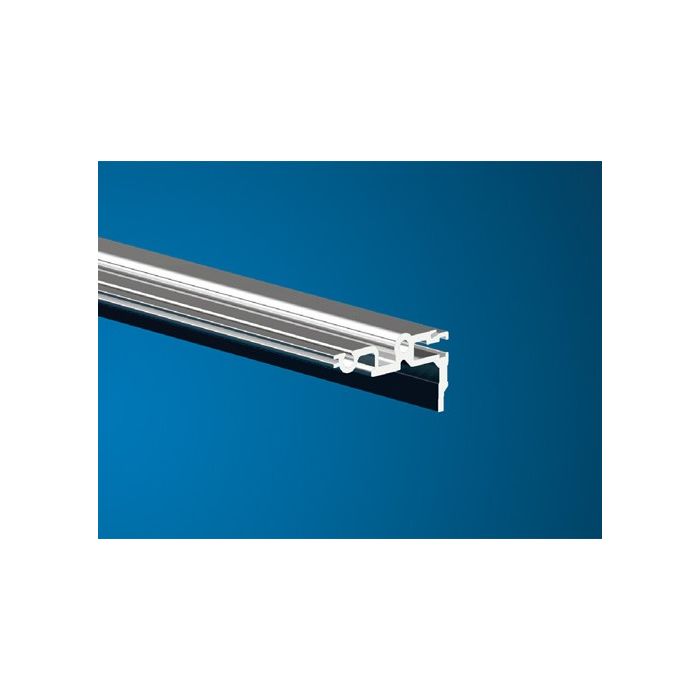

Horizontal rail rear 84HP EASY PU=2pc

SKU:
3634620
Fabrikant:
HEITEC AG
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Product features
    Product typeHeiPac Easy accessories
    Product groupRear horizontal rail, with integrated Z-profile, double screw fastening (EASY EST1)
    Handle holeNo
    General product informationTo accommodate guide rails, integral Z rail for the
    attachment of connectors
    • Pre-assembled screws M 4x12 for fast mounting on the subrack side panel
    • HP pitch pattern of holes for precise mounting of guide rails
    • On request with double screw fastening to ensure a high stability
    • M4 thread on end face
    • Straight-through core hole for optional double screw fastening
    • Height of the profile allows cover extension
    Material: Extruded aluminum section Surface finish: noncorrosive Supply includes: 2 horizontal rails with pre-assembled screws M4 x 12
    Weight211,5 kg
  • General data
    ManufacturerHEITEC AG
    Ean code4250558922705
    Warranty12 Months
