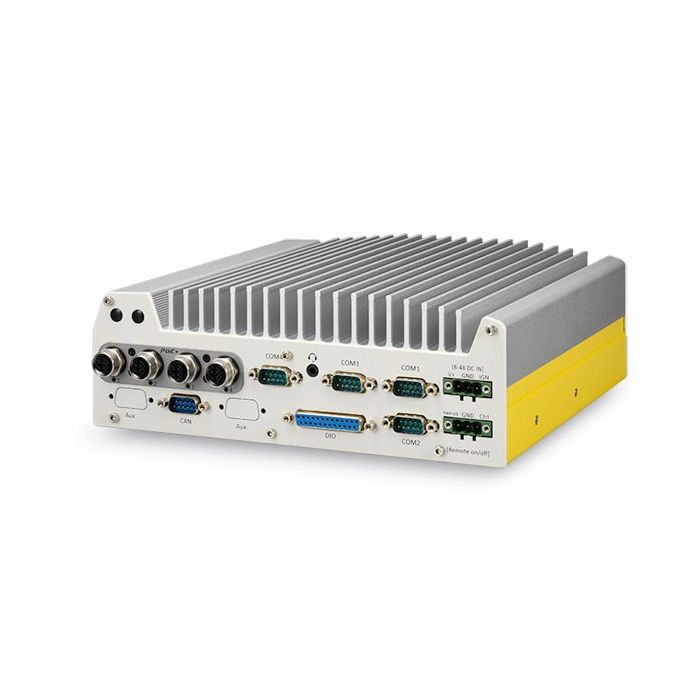

Nuvo-9100VTC is Neousys' latest rugged in-vehicle controller based on Intel® 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.
Nuvo-9100VTC provides flexibility to support a range of peripherals and connections. It has 2.5Gb and 1Gb Ethernet ports, and four or eight 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also has x-coded M12 connectors and screw-lock mechanisms on the computer I/Os like Gigabit Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and CAN module for communication.
On top of all that, Nuvo-9100VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control, and is E-Mark certified, making it the perfect solution with extraordinary reliability for various in-vehicle applications.
More Information
Processor
Processor
Intel Core, Pentium, Celeron
Processor serie
Alder Lake, Raptor Lake
Socket type
LGA1700
Base Frequency
i7-13700TE: max. 4.80GHz
Number of cores
16
TDP
up to 65W TDP
chipset
Q670E
Memory
Memory type
DDR5
Memory slots
2
Video
Connections
VGA
1x VGA, supporting 1920 x 1200 resolution
DVI-D
1x DVI-D, supporting 1920 x 1200 resolution
DisplayPort
1x DisplayPort, supporting 4096 x 2304 resolution
Chipset
Integrated Intel® UHD Graphics 770 (32EU)
Main features
Characteristics
• Supports Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
• 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
• 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
• On-board isolated CAN bus for in-vehicle communication
• 4-CH isolated DI and 4-CH isolated DO
• M.2 Gen4 x4 NVMe SSD slot
• 8V to 48V wide-range DC input with built-in ignition power control
• 2x SATA ports with 1x hot-swappable HDD tray, supporting RAID 0/1
• E-Mark certified and EN 50155 EMC compliant
Expansion
expansion slots
Mini PCIe
1x full-size mini-PCIe socket
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2
1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module
Ports & Interfaces
serial ATA interface
2x SATA III
RAID
0, 1
LAN Interface
6
USB 2.0 ports
2
USB 3.x ports
7
Audio interface
1x 3.5 mm jack for mic-in and speaker-out
External I/O
Ethernet Ports
1x 2.5G Ethernet by I225-IT
1x Gigabit Ethernet by I219-LM with screw-lock
4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 - RJ45 connector
USB
1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
2x USB 2.0 ports
Serial Port
2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
2x RS-232 ports (COM3/COM4)
Audio Port
1x 3.5 mm jack for mic-in and speaker-out
CAN
1x isolated CAN 2.0 port
Isolated DIO
4-CH isolated DI and 4-CH isolated DO
