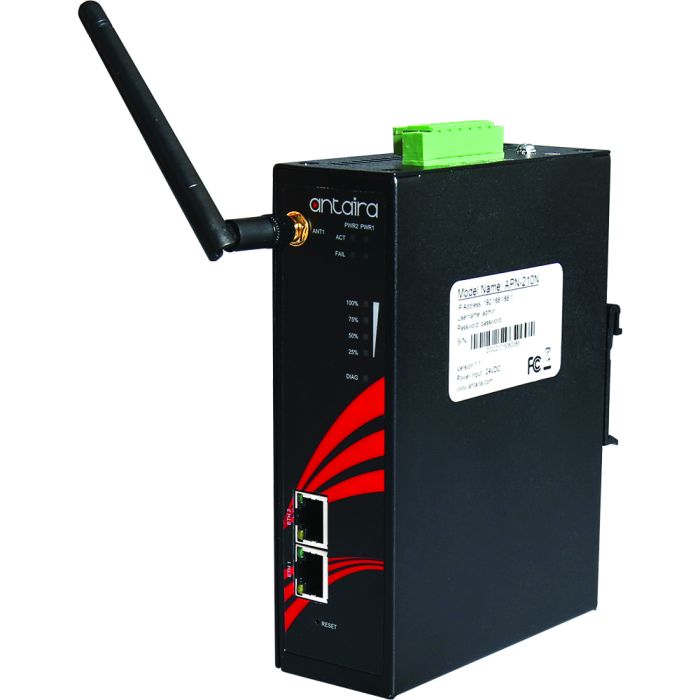

Industrial b/g/n Wireless LAN AP/Bridge/Repeater -35ºC~70ºC
-
Manufacturer :
Antaira
-
Device :
AP/Bridge/Repeaters
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Ports & Interfaces
LAN Interface | 2 |
---|
Protocol | ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SNMP v1/v2, Trap, Private MIB |
---|
Led | PWR 1, PWR 2, DIAG, Ethernet Link/ACT, Signal Level, PWR1 FAIL, PWR2 FAIL |
---|
Encryption Security | WEP: 64-bit, 128-bit Key Supported
WPA / WPA2: 802.11i (WEP and AES Encryption)
PSK (256-bit Key Pre-shared Key Supported)
802.1x and RADIUS Supported
TKIP Encryption |
---|
Wireless Security | SSID Broadcast Disable
3 x Virtual Access Points
MAC Address Filter |
-
Mechanical specifications
Dimensions | 46 x 155 x 115 mm (1.81 x 6.10 x 4.53 in.) |
---|
Casing | Din Rail |
-
Electrical specifications
Input range | 12 ~ 24VDC in 6-Pin Terminal Block, Dual Power |
-
Environmental specification
Storage temperature | -40° C to 90° C |
---|
Operating Temperature | -35°C/+70°C |
---|
relative air humidity | 5% to 95% (Non-condensing) |
-
Certificates
standards | IEEE802.11b/g/n:
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan)
Shock: IEC60068-2-27
Free Fall: IEC60068-2-32
Vibration: IEC60068-2-6
|
---|
certificates | FCC |
-
General data
Manufacturer | Antaira |
---|
Warranty | 60 Months |
|
