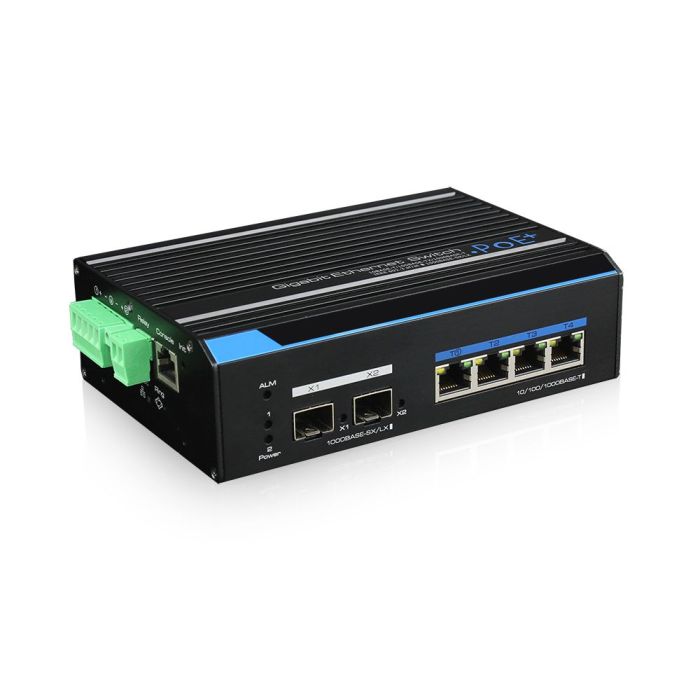

    main product photo

    Industrial Full Gigabit Managed PoE Switch

    SKU:
    UTP7304GE-POE
    Fabrikant:
    Utepo
    • Manufacturer : Utepo
    • Device : Managed Switch
    Lokaal op voorraad
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      Characteristics• Provide 4* 10/100/1000Base-T RJ45 ports (PoE), 2 * 1000BASE-X SFP port
      • Buffer reaches 4Mbit, Support 4K high-definition video transmission
      • PoE function: 1 port 60W HPoE, 3 ports 30W PoE
      • Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function; l Support fast ring , support 30 pcs switches Max. in a cascade system , Self-healing in 20ms Min.
      • Support one-key Fast-Ring setup, 2 SFP ports developed a fast-ring.
      • Support relay alarm for power off, network broken, PoE off ； l 6KV surge immunity, 8KV ESD protection and anti-interference ability
      • -40℃～75℃ working temperature
    • Ports & Interfaces
      LAN Interface6
      transfer rate• Copper Ports: 4* 10/100/1000Base-T PoE RJ45 (Auto-MDI/MDI-X)
      • SFP Ports: 2* 1000 Base-X SFP (Mini-GBIC)
      PoE availableYes
      POE capability• PoE Standard: T1 HPoE 60W max (also support 802.3af/at) , T2～T4 802.3af/at 30W max

      POE Management • Support Total Power Consumption Control
      • Support PoE ON/OFF
      • Support Single Port 60W max. Power Change and Port Output Priority
    • Mechanical specifications
      Dimensions159mm (l) × 110mm (w) × 46.5mm (h)
      Mounting• Installation: On desk; Din-rail; Wall hung
    • Product features
      Weight1.5kg
    • Environmental specification
      Storage temperature• -40-85℃
      Operating Temperature-40°C/+75°C
      relative air humidity• Humidity: 5%-95% (Non-condensing)
    • Certificates
      standardsEMI • FCC Part 15, CISPR (EN55022) class A

      EMC • Surge level-4 IEC61000-4-5
      • ESD level-4 (8KV/10KV) IEC61000-4-2
      • RS level-4 IEC61000-4-3
      • EFT level-4 IEC61000-4-4
      • CS level-3 IEC61000-4-6
      • M/S level-5 IEC61000-4-8
    • General data
      ManufacturerUtepo
      Warranty24 Months
    Downloads
  • ManualUser%20Manual%20UTP7304GE-POE%20V1.0.pdf
    datasheetUTP7304GE-POE%20Datasheet%20V1.2.pdf
    		•
    €401.72 €332.00
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
